T41310 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

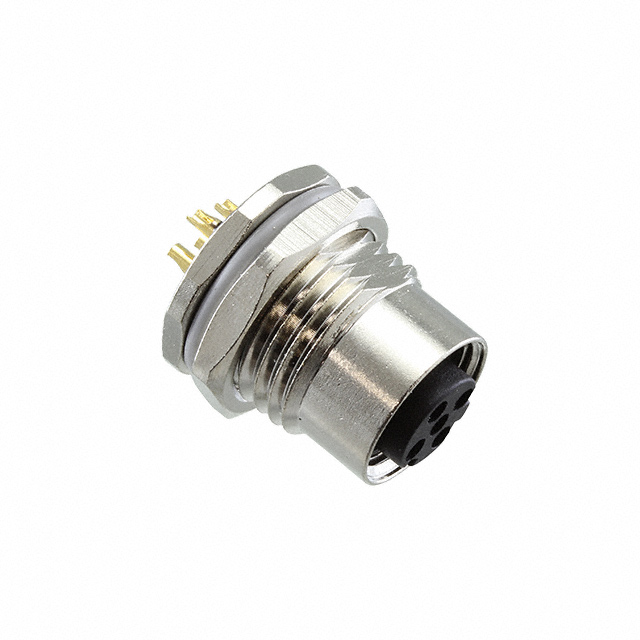

SENSOR CONNECTOR, M12, FEMALE, 2 POSITIONS, SOLDER SOCKET, STRAIGHT PANEL MOUNT
| Part | Applications | Contact Material | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Current Rating (Amps) | Connector Type | Material Flammability Rating | Shell Material | Fastening Type | Mounting Feature | Number of Positions | Primary Material | Color | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Shell Finish | Mounting Type | Shell Size - Insert | Shielding | Orientation | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Industrial | Copper Alloy | Nylon 6/6 Polyamide (PA66) | 0.076 µm | 3 µin | Gold | 4 A | Plug Female Sockets | UL94 V-0 | Copper Alloy | Threaded | Bulkhead - Front Side Nut | 2 | Metal | Silver | IP67 - Dust Tight Waterproof | 85 °C | -40 C | Nickel | Panel Mount | M12-2 | Unshielded | A | 250 V |
 TE Connectivity AMP Connectors | Industrial | Copper Alloy | Nylon 6/6 Polyamide (PA66) | Gold | 1.5 A | Receptacle Female Sockets | Copper Alloy | Threaded | Bulkhead - Front Side Nut | 12 | Metal | Silver | IP67 - Dust Tight Waterproof | 85 °C | -40 C | Nickel | Panel Mount | M12-12 | Unshielded | A | 30 VDC | |||
 TE Connectivity AMP Connectors | Industrial | Copper Alloy | Nylon 6/6 Polyamide (PA66) | 0.076 µm | 3 µin | Gold | 4 A | Plug Female Sockets | UL94 V-0 | Copper Alloy | Threaded | Bulkhead - Front Side Nut | 5 | Metal | Silver | IP67 - Dust Tight Waterproof | 85 °C | -40 C | Nickel | Panel Mount | M12-5 | Unshielded | A | 60 VDC |
