VTP7840 Series
Manufacturer: Excelitas Technologies
Beta
⌘K

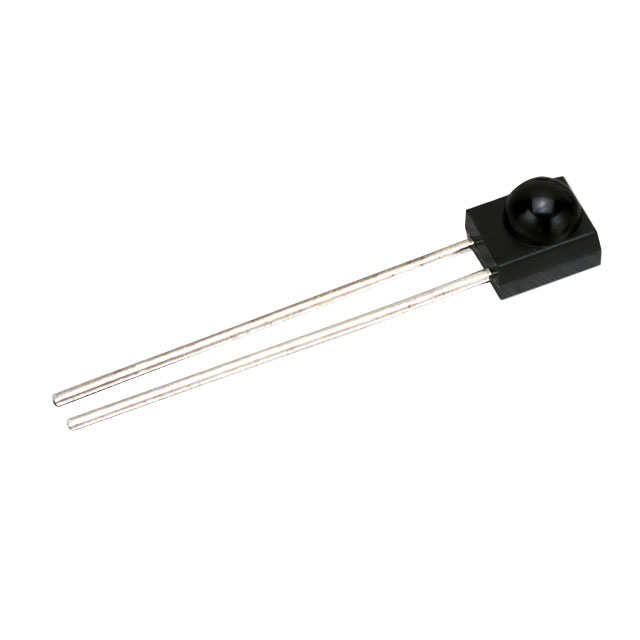

SENSOR PHOTODIODE 925NM RADIAL
| Part | Active Area | Spectral Range [Min] | Spectral Range [Max] | Responsivity @ nm | Operating Temperature [Max] | Operating Temperature [Min] | Current - Dark (Typ) | Viewing Angle | Wavelength | Package / Case | Voltage - DC Reverse (Vr) (Max) [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Excelitas Technologies | 5.27 mm² | 725 nm | 1150 nm | 0.55 A/W | 85 °C | -40 C | 20 nA | 96 ° | 925 nm | Radial Side View | 1 V | Through Hole |
