PRMAC Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

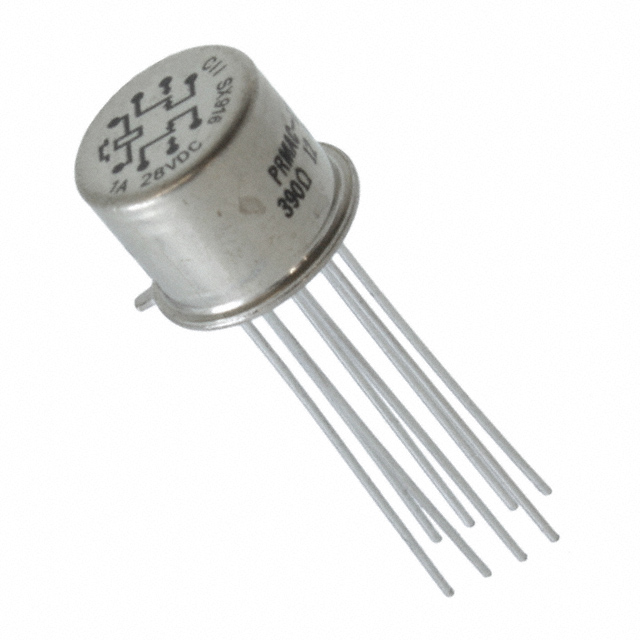

RELAY GEN PURPOSE DPDT 1A 12V
| Part | Coil Resistance | Coil Voltage | Termination Style | Operate Time | Coil Type | Relay Type | Must Operate Voltage | Contact Form | Switching Voltage | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Release Time | Must Release Voltage | Seal Rating | Coil Current | Contact Rating (Current) | Contact Material | Switching Voltage [Max] | Features | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 390 Ohms | 12 VDC | PC Pin | 2 ms | Non Latching | General Purpose | 7 VDC | DPDT (2 Form C) | 28 VDC | Through Hole | -65 ░C | 125 °C | 1.5 ms | 0.63 VDC | Sealed - Hermetically | 30.7 mA | 1 A | ||||
 TE Connectivity AMP Connectors | 50 Ohms | 5 VDC | PC Pin | 2 ms | Non Latching | General Purpose | 2.7 VDC | DPDT (2 Form C) | Through Hole | -65 ░C | 125 °C | 4 ms | 0.22 VDC | Sealed - Hermetically | 0.1 A | 1 A | Gold (Au) Silver Palladium (AgPd) | 28 VDC 115 VAC | Diode | 28 W 115 VA | |
TE Connectivity AMP Connectors | 1560 Ohms | 26.5 VDC | PC Pin | 2 ms | Non Latching | General Purpose | 14.2 VDC | DPDT (2 Form C) | Through Hole | -65 ░C | 125 °C | 1.5 ms | 1.37 VDC | Sealed - Hermetically | 17 mA | 1 A | Gold (Au) Silver Palladium (AgPd) | 28 VDC 115 VAC | 28 W 115 VA | ||
 TE Connectivity AMP Connectors | 1560 Ohms | 26.5 VDC | PC Pin | 2 ms | Non Latching | General Purpose | 14.2 VDC | DPDT (2 Form C) | 28 VDC | Through Hole | -65 ░C | 125 °C | 1.5 ms | 1.37 VDC | Sealed - Hermetically | 17 mA | 1 A | ||||
TE Connectivity AMP Connectors | 880 Ohms | 18 VDC | PC Pin | 2 ms | Non Latching | General Purpose | 10.5 VDC | DPDT (2 Form C) | Through Hole | -65 ░C | 125 °C | 1.5 ms | 0.93 VDC | Sealed - Hermetically | 20.5 mA | 1 A | Gold (Au) Silver Palladium (AgPd) | 28 VDC 115 VAC | 28 W 115 VA |
