Barrier Terminal Blocks BARRIER BLOCK
Barrier Terminal Blocks BARRIER BLOCK
| Part | Bottom Termination | Voltage Rating | Number of Rows [custom] | Top Termination | Number of Circuits | Current Rating (Amps) | Terminal Block Type | Pitch | Pitch | Barrier Type | Wire Gauge [Max] | Wire Gauge [Min] | Features | Color | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Terminal Screw Material | Material - Insulation | Mounting Type | Number of Wire Entries | Terminal Screw Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | Closed | 600 V | 2 | Screws with Quick Connect Tabs | 12 | 30 A | Barrier Block | 0.562 " | 14.27 mm | 2 Wall (Dual) | 22 AWG | 10 AWG | Flange | Black | ||||||||

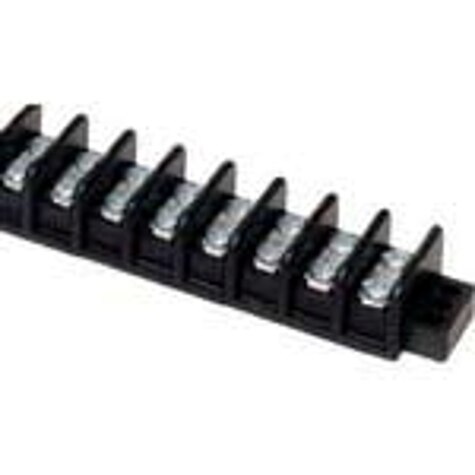

 Eaton - Electronics Division | Closed | 600 V | 2 | Screws with Quick Connect Tabs | 10 | 30 A | Barrier Block | 0.562 " | 14.27 mm | 2 Wall (Dual) | 22 AWG | 8 AWG | Flange | Black | UL94 V-0 | 130 °C | -40 C | Stainless Steel | Thermoplastic | Chassis Panel | 20 | |
Eaton - Electronics Division | Closed | 600 V | 2 | Screws | 16 | 30 A | Barrier Block | 0.562 " | 14.27 mm | 2 Wall (Dual) | 22 AWG | 8 AWG | Flange | Black | 32 | |||||||
Eaton - Electronics Division | Closed | 600 V | 2 | Screws | 2 | 30 A | Barrier Block | 0.562 " | 14.27 mm | 2 Wall (Dual) | 22 AWG | 8 AWG | Flange | Black | 4 | |||||||

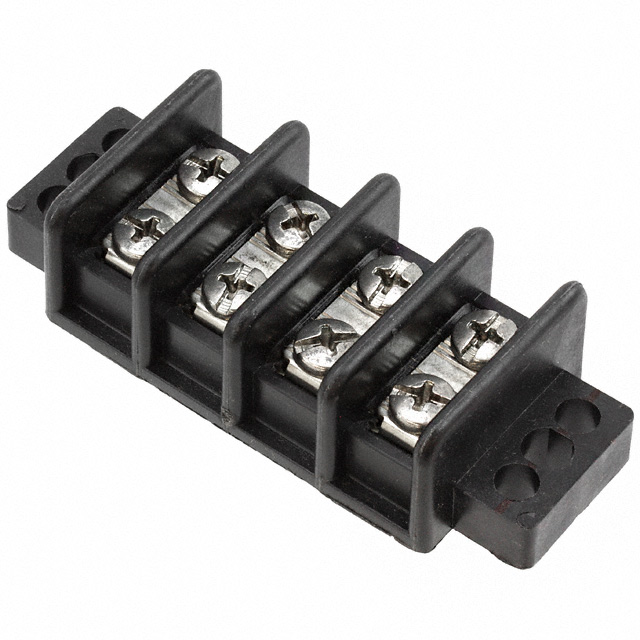

 Eaton - Electronics Division | Closed | 600 V | 2 | Screws | 4 | 30 A | Barrier Block | 0.562 " | 14.27 mm | 2 Wall (Dual) | 22 AWG | 8 AWG | Flange | Black | UL94 V-0 | 130 °C | -40 C | Brass | Thermoplastic | Chassis Panel | 8 | Nickel |
