VC Series

Catalog

VARISTORS 2VAC 3.5VDC 0.02J 12 5PF 8.84 V 14V

Part	Energy	Varistor Voltage (Min) [Min]	Mounting Type	Varistor Voltage (Max) [Max]	Capacitance @ Frequency	Maximum DC Volts [Max]	Maximum AC Volts [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Current - Surge	Package / Case	Package / Case	Varistor Voltage (Typ)	Varistor Voltage (Max)	Type	Voltage - Breakdown (Min) [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Current - Peak Pulse (10/1000µs)	Unidirectional Channels [custom]	Voltage - Reverse Standoff (Typ)	Applications	Supplier Device Package

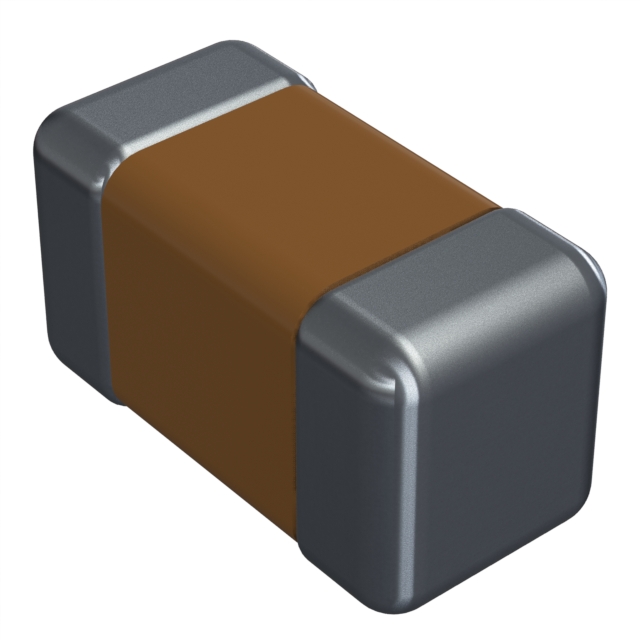

KYOCERA AVX VC020103V121WP	0.02 J	4.76 V	MLCV Surface Mount	8.84 V	1 kHz 125 pF	3.5 V	2 V	125 °C	-55 °C	1	10 A	0603 Metric	0201

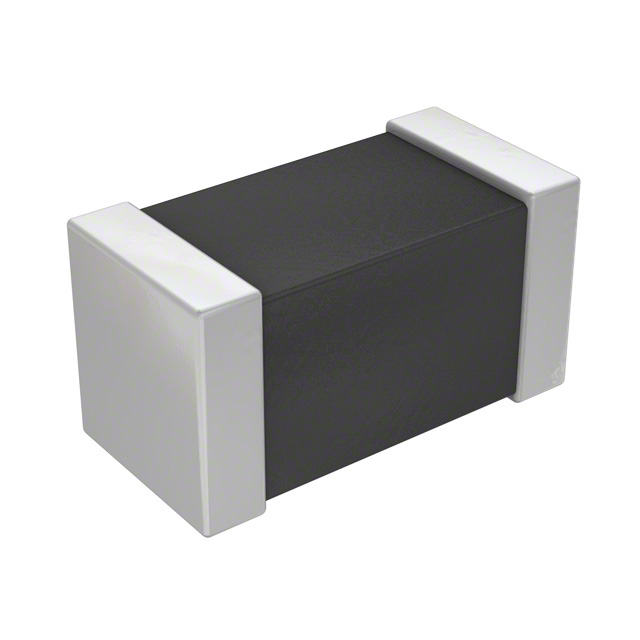

KYOCERA AVX VC120631M650RP	1 J	35.1 V	MLCV Surface Mount	42.9 V	1 kHz 500 pF	31 V	25 V	125 °C	-55 °C	1	200 A		1206 (3216 Metric)	39 V
KYOCERA AVX VC32M00151K--
KYOCERA AVX VC120630D650RP	0.4 J	36.9 V	MLCV Surface Mount	45.1 V	600 pF	30 V	21 V	125 °C	-55 °C	1	120 A		1206 (3216 Metric)	41 V
KYOCERA AVX VC080526C580DP	0.3 J	31.05 V	MLCV Surface Mount	37.95 V	1 kHz 250 pF	26 V	18 V	125 °C	-55 °C	1	100 A		0805	34.5 V
KYOCERA AVX VC121030G620RP	0.9 J	36.9 V	MLCV Surface Mount	45.1 V	1850 pF	30 V	21 V	125 °C	-55 °C	1	220 A	3225 Metric	1210	41 V
KYOCERA AVX VC120618D400DP	0.4 J	22.95 V	MLCV Surface Mount		900 pF	18 V	13 V	125 °C	-55 °C	1	150 A		1206 (3216 Metric)	25.5 V
KYOCERA AVX VC120603A100RP	0.1 J	4 V	MLCV Surface Mount		1250 pF	3.3 V	2.3 V	125 °C	-55 °C	1	40 A		1206 (3216 Metric)	5 V	6 V

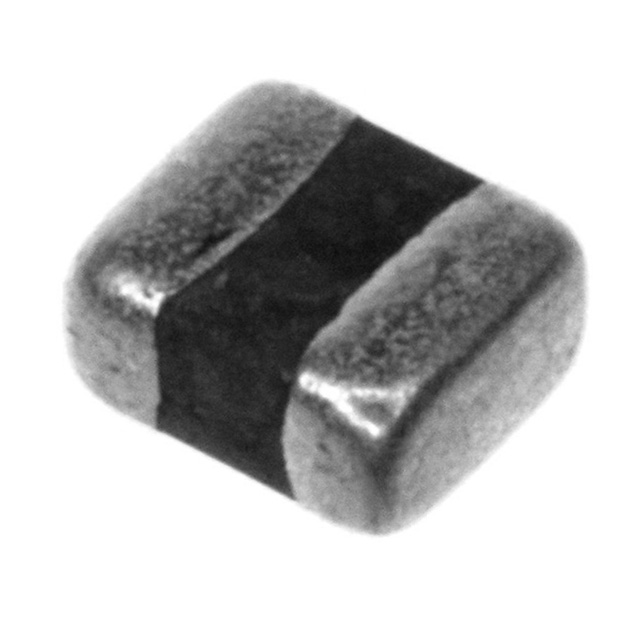

KYOCERA AVX VC121030S620DP			Surface Mount		1500 pF			125 °C	-55 °C			3225 Metric	1210			Zener	41 V	67 V	300 A	1	30 V	General Purpose	1210
KYOCERA AVX VC020105T330WP	0.01 J	10 V	MLCV Surface Mount	15.6 V	33 pF	5.6 V	4 V	125 °C	-55 °C	1	4 A	0603 Metric	0201	12.8 V
