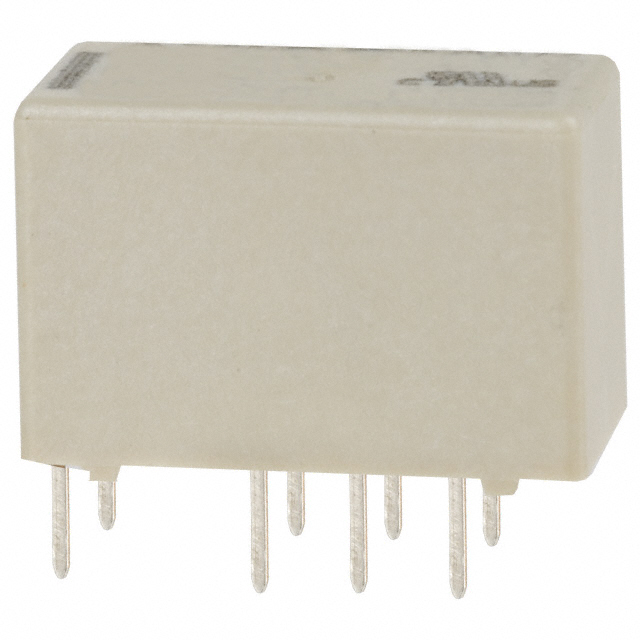

1393788 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RELAY GEN PURPOSE DPDT 2A 4.5V

Part	Coil Resistance	Coil Voltage	Switching Voltage [Max]	Operate Time	Coil Type	Contact Rating (Current)	Coil Current	Termination Style	Release Time	Contact Material	Load - Max Switching	Mounting Type	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Must Operate Voltage	Must Release Voltage
TE Connectivity AMP Connectors V23079B1211B301	145 Ohms	4.5 VDC	220 VDC 250 VAC	4 ms	Dual Coil Latching	2 A	31 mA	PC Pin	6 ms	Gold (Au) Silver Nickel (AgNi)	440 W 500 VA	Through Hole	General Purpose	85 °C	-40 C	DPDT (2 Form C)
TE Connectivity AMP Connectors V23079C1101B301	357 Ohms	5 VDC	220 VDC 250 VAC	4 ms	Latching Single Coil	2 A	14 mA	PC Pin	4 ms	Gold (Au) Silver Nickel (AgNi)	440 W 500 VA	Through Hole	General Purpose	85 °C	-40 C	DPDT (2 Form C)	3.75 VDC
TE Connectivity AMP Connectors V23079F1103B301	2.06 kOhms	12 VDC	220 VDC 250 VAC	4 ms	Latching Single Coil	2 A	5.8 mA	Gull Wing	4 ms	Gold (Au) Silver Nickel (AgNi)	440 W 500 VA	Surface Mount	General Purpose	85 °C	-40 C	DPDT (2 Form C)	9 VDC
TE Connectivity AMP Connectors V23079D1011B301	145 Ohms	4.5 VDC	220 VDC 250 VAC	4 ms	Non Latching	2 A	31.1 mA	Gull Wing	4 ms	Gold (Au) Silver Nickel (AgNi)	440 W 500 VA	Surface Mount	General Purpose	85 °C	-40 C	DPDT (2 Form C)	3.38 VDC	0.45 VDC
TE Connectivity AMP Connectors V23079G1001B301	178 Ohms	5 VDC	220 VDC 250 VAC	4 ms	Non Latching	2 A	28 mA	Gull Wing	4 ms	Gold (Au) Silver Nickel (AgNi)	440 W 500 VA	Surface Mount	General Purpose	85 °C	-40 C	DPDT (2 Form C)	3.75 VDC	0.5 VDC
TE Connectivity AMP Connectors V23079F1108B301	128 Ohms		220 VDC 250 VAC	4 ms	Latching Single Coil	2 A	23.3 mA	Gull Wing	4 ms	Gold (Au) Silver Nickel (AgNi)	440 W 500 VA	Surface Mount	General Purpose	85 °C	-40 C	DPDT (2 Form C)	2.25 VDC
TE Connectivity AMP Connectors V23079E1208B301	64 Ohms		220 VDC 250 VAC	4 ms	Dual Coil Latching	2 A	46.7 mA	Gull Wing	4 ms	Gold (Au) Silver Nickel (AgNi)	440 W 500 VA	Surface Mount	General Purpose	85 °C	-40 C	DPDT (2 Form C)	2.25 VDC
TE Connectivity AMP Connectors V23079G1008B301	64 Ohms		220 VDC 250 VAC	4 ms	Non Latching	2 A	46.7 mA	Gull Wing	4 ms	Gold (Au) Silver Nickel (AgNi)	440 W 500 VA	Surface Mount	General Purpose	85 °C	-40 C	DPDT (2 Form C)	2.25 VDC	0.3 VDC
TE Connectivity AMP Connectors V23079A1001B301	178 Ohms	5 VDC	220 VDC 250 VAC	4 ms	Non Latching	2 A	28 mA	PC Pin	4 ms	Gold (Au) Silver Nickel (AgNi)	440 W 500 VA	Through Hole	General Purpose	85 °C	-40 C	DPDT (2 Form C)	3.75 VDC	0.5 VDC
TE Connectivity AMP Connectors V23079D1001B301	178 Ohms	5 VDC	220 VDC 250 VAC	4 ms	Non Latching	2 A	28 mA	Gull Wing	4 ms	Gold (Au) Silver Nickel (AgNi)	440 W 500 VA	Surface Mount	General Purpose	85 °C	-40 C	DPDT (2 Form C)	3.75 VDC	0.5 VDC
