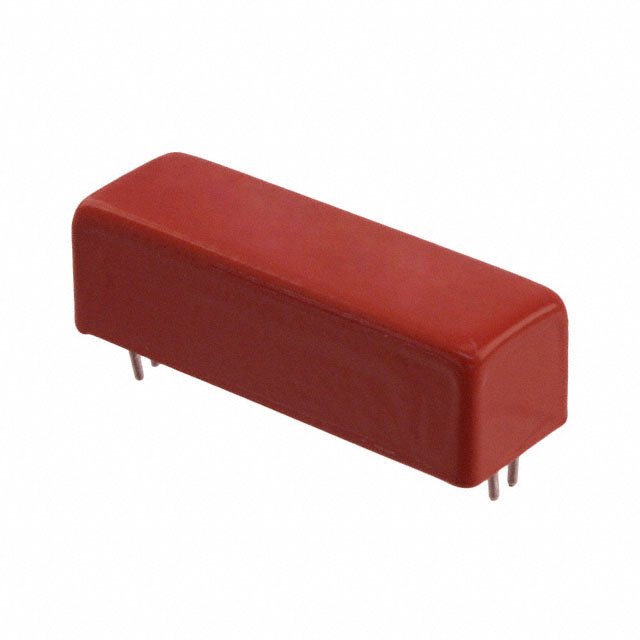

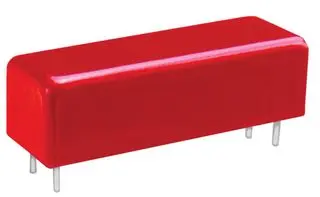

7301 Series
Manufacturer: COTO TECHNOLOGY
Beta
⌘K
RELAY REED SPST 500MA 12V
| Part | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Termination Style | Coil Type | Mounting Type | Operate Time | Contact Form | Coil Voltage | Must Operate Voltage | Must Release Voltage | Switching Voltage | Contact Rating (Current) | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 COTO TECHNOLOGY | 0.1 ms | 85 °C | -20 ░C | 10.9 mA | PC Pin | Non Latching | Through Hole | 1 ms | SPST-NO (1 Form A) | 12 VDC | 9 VDC | 1 VDC | 500 VAC 500 VDC | 0.5 A | ||
 COTO TECHNOLOGY | 0.1 ms | 85 °C | -20 ░C | 28.6 mA | PC Pin | Non Latching | Through Hole | 1 ms | SPST-NO (1 Form A) | 5 VDC | 3.75 VDC | 0.4 VDC | 500 VAC 500 VDC | 0.5 A | 175 Ohms | |
 COTO TECHNOLOGY | 0.1 ms | 85 °C | -20 ░C | 28.6 mA | PC Pin | Non Latching | Through Hole | 1 ms | SPST-NO (1 Form A) | 5 VDC | 3.75 VDC | 0.4 VDC | 500 VAC 500 VDC | 0.5 A | 175 Ohms | Electrostatic Shield |
COTO TECHNOLOGY | 0.1 ms | 85 °C | -20 ░C | 5.7 mA | PC Pin | Non Latching | Through Hole | 1 ms | SPST-NO (1 Form A) | 24 VDC | 18 VDC | 2 VDC | 500 VAC 500 VDC | 0.5 A | 4.2 kOhms | Diode |
