QE Series

Catalog

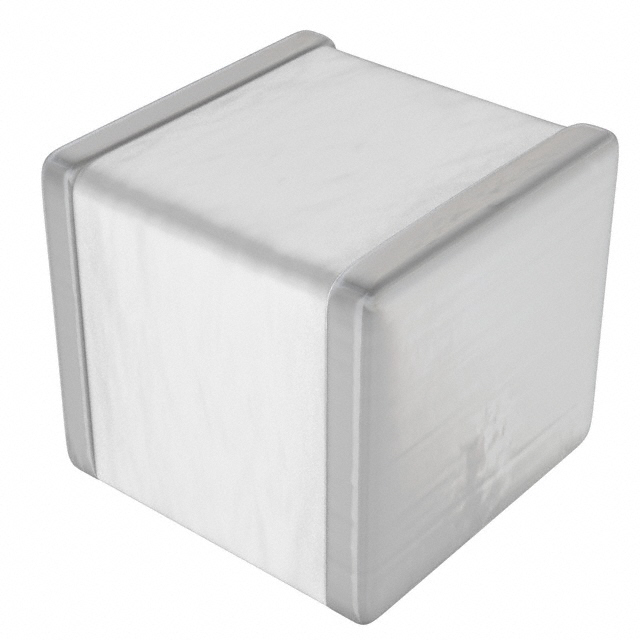

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT HIQ 1111 13PF 1% 1KV

Part	Temperature Coefficient	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Applications	Mounting Type	Thickness (Max) [Max]	Thickness (Max) [Max]	Tolerance	Features	Voltage - Rated	Voltage - Rated	Package / Case
Johanson Technology Inc. QEDB102Q130F1GV001E	C0G NP0	13 pF	-55 C	125 °C	0.11 "	2.79 mm	2.79 mm	0.11 in	High Frequency Microwave RF	MLCC Surface Mount	2.59 mm	0.102 "	1 %	High Q High Voltage Low Loss	1 kV	1000 V	1111 (2828 Metric)
Johanson Technology Inc. QEDB102Q680J1GV001E	C0G NP0	68 pF	-55 C	125 °C	0.11 "	2.79 mm	2.79 mm	0.11 in	High Frequency Microwave RF	MLCC Surface Mount	2.59 mm	0.102 "	5 %	High Q High Voltage Low Loss	1 kV	1000 V	1111 (2828 Metric)
Johanson Technology Inc. QEDB201Q431K1GV001E	C0G NP0	430 pF	-55 C	125 °C	0.11 "	2.79 mm	2.79 mm	0.11 in	High Frequency Microwave RF	MLCC Surface Mount	2.59 mm	0.102 "	10 %	High Q Low Loss		200 VDC	1111 (2828 Metric)
Johanson Technology Inc. QEDB102Q180K1GV001E	C0G NP0	18 pF	-55 C	125 °C	0.11 "	2.79 mm	2.79 mm	0.11 in	High Frequency Microwave RF	MLCC Surface Mount	2.59 mm	0.102 "	10 %	High Q High Voltage Low Loss	1 kV	1000 V	1111 (2828 Metric)
Johanson Technology Inc. QEDB501Q240F1GV001E	C0G NP0	24 pF	-55 C	125 °C	0.11 "	2.79 mm	2.79 mm	0.11 in	High Frequency Microwave RF	MLCC Surface Mount	2.59 mm	0.102 "	1 %	High Q High Voltage Low Loss		500 V	1111 (2828 Metric)
Johanson Technology Inc. QEDB102Q0R5C1GV001E	C0G NP0	0.5 pF	-55 C	125 °C	0.11 "	2.79 mm	2.79 mm	0.11 in	High Frequency Microwave RF	MLCC Surface Mount	2.59 mm	0.102 "	0.25 pF	High Q High Voltage Low Loss	1 kV	1000 V	1111 (2828 Metric)
Johanson Technology Inc. QEDB102Q6R2B1GV001E	C0G NP0	6.2 pF	-55 C	125 °C	0.11 "	2.79 mm	2.79 mm	0.11 in	High Frequency Microwave RF	MLCC Surface Mount	2.59 mm	0.102 "	0.1 pF	High Q High Voltage Low Loss	1 kV	1000 V	1111 (2828 Metric)
Johanson Technology Inc. QEDB501Q200F1GV001E	C0G NP0	20 pF	-55 C	125 °C	0.11 "	2.79 mm	2.79 mm	0.11 in	High Frequency Microwave RF	MLCC Surface Mount	2.59 mm	0.102 "	1 %	High Q High Voltage Low Loss		500 V	1111 (2828 Metric)
Johanson Technology Inc. QEDB501Q6R2C1GV001E	C0G NP0	6.2 pF	-55 C	125 °C	0.11 "	2.79 mm	2.79 mm	0.11 in	High Frequency Microwave RF	MLCC Surface Mount	2.59 mm	0.102 "	0.25 pF	High Q High Voltage Low Loss		500 V	1111 (2828 Metric)
Johanson Technology Inc. QEDB501Q1R3C1GV001E	C0G NP0	1.3 pF	-55 C	125 °C	0.11 "	2.79 mm	2.79 mm	0.11 in	High Frequency Microwave RF	MLCC Surface Mount	2.59 mm	0.102 "	0.25 pF	High Q High Voltage Low Loss		500 V	1111 (2828 Metric)
