M3AGK Series

Catalog

IDC CABLE - MSC10K/MC10M/MCS10K

Part	Number of Rows [custom]	Connector Type	Color	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Number of Positions	Contact Finish	Pitch - Cable	Pitch - Cable	Features	Shielding	Cable Termination	Length	Number of Positions [custom]	Length [x]	Length [x]
3M Electronic Specialty M3AGK-1036R	2	Socket to Card Edge	Multiple Ribbon	0.1 in	2.54 mm	30 Áin	0.76 Ám	91.44 cm	3 ft	10	Gold	0.05 in	1.27 mm	Flange	Unshielded	IDC
3M Electronic Specialty M3AGK-1606J	2	Socket to Card Edge		0.1 in	2.54 mm	30 Áin	0.76 Ám	152.4 mm	0.5 '	16	Gold	0.05 in	1.27 mm	Flange	Unshielded	IDC	6 "
3M Electronic Specialty M3AGK-3436R	2	Socket to Card Edge	Multiple Ribbon	0.1 in	2.54 mm	30 Áin	0.76 Ám	91.44 cm	3 ft		Gold	0.05 in	1.27 mm	Flange	Unshielded	IDC		34

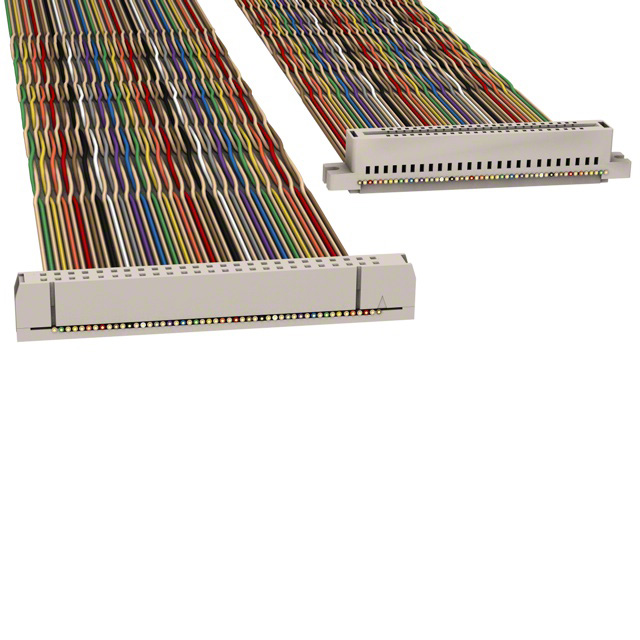

3M Electronic Specialty M3AGK-5040K	2	Socket to Card Edge	Multiple Twisted Pair (Flat)	0.1 in	2.54 mm	30 Áin	0.76 Ám	1.02 m	3.34 ft	50	Gold	0.05 in	1.27 mm	Flange	Unshielded	IDC

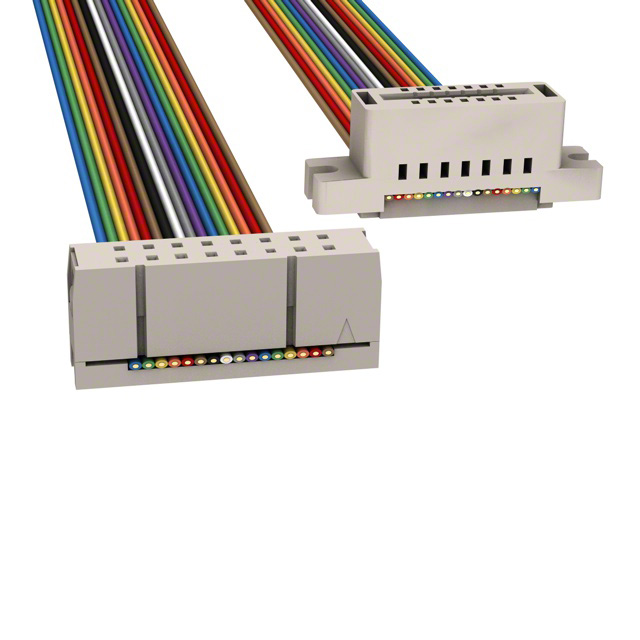

3M Electronic Specialty M3AGK-1640K	2	Socket to Card Edge	Multiple Twisted Pair (Flat)	0.1 in	2.54 mm	30 Áin	0.76 Ám	1.02 m	3.34 ft	16	Gold	0.05 in	1.27 mm	Flange	Unshielded	IDC
3M Electronic Specialty M3AGK-3440K	2	Socket to Card Edge	Multiple Twisted Pair (Flat)	0.1 in	2.54 mm	30 Áin	0.76 Ám	1.02 m	3.34 ft		Gold	0.05 in	1.27 mm	Flange	Unshielded	IDC		34
3M Electronic Specialty M3AGK-1020K	2	Socket to Card Edge	Multiple Twisted Pair (Flat)	0.1 in	2.54 mm	30 Áin	0.76 Ám	508 mm	1.67 ft	10	Gold	0.05 in	1.27 mm	Flange	Unshielded	IDC
3M Electronic Specialty M3AGK-3406R	2	Socket to Card Edge	Multiple Ribbon	0.1 in	2.54 mm	30 Áin	0.76 Ám	152.4 mm	0.5 '		Gold	0.05 in	1.27 mm	Flange	Unshielded	IDC	6 "	34
3M Electronic Specialty M3AGK-1618R	2	Socket to Card Edge	Multiple Ribbon	0.1 in	2.54 mm	30 Áin	0.76 Ám			16	Gold	0.05 in	1.27 mm	Flange	Unshielded	IDC			457.2 mm	1.5 ft
3M Electronic Specialty M3AGK-4018J	2	Socket to Card Edge		0.1 in	2.54 mm	30 Áin	0.76 Ám			40	Gold	0.05 in	1.27 mm	Flange	Unshielded	IDC			457.2 mm	1.5 ft
