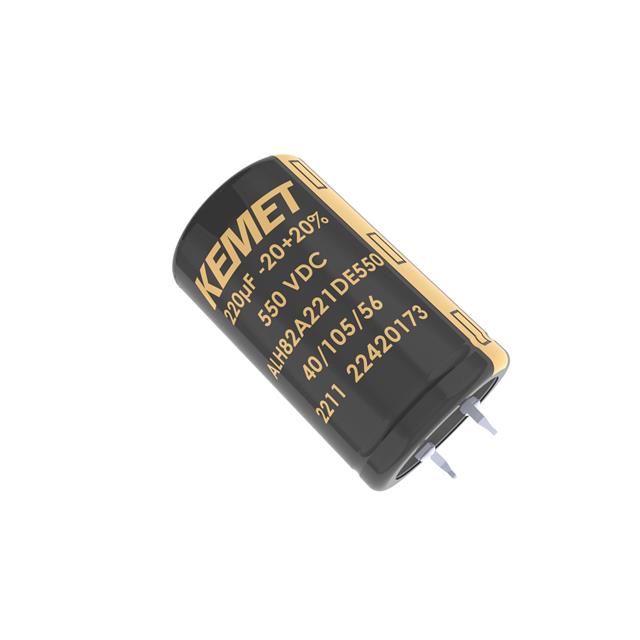

ALH82 Series

Manufacturer: KEMET

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 600 VOLT 75 UF 105C

Part	Voltage - Rated	Impedance	Applications	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Lead Spacing	Lead Spacing	Polarization	Tolerance	Ripple Current @ High Frequency	Size / Dimension	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Mounting Type	Ripple Current @ Low Frequency	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]
KEMET ALH82A750CB600	600 V	1.257 Ohms	General Purpose	3000 Hrs	-40 C	105 ░C	1.26 in	32 mm	Radial Can - Snap-In	0.394 in	10 mm	Polar	20 %	2.74 A	30 mm	1.181 "	1.861 Ohm	Through Hole	970 mA	75 µF
KEMET ALH82A221DF600	600 V	432 mOhms	General Purpose	3000 Hrs	-40 C	105 ░C			Radial Can - Snap-In	0.394 in	10 mm	Polar	20 %	5.5 A		1.378 "	639 mOhm	Through Hole	2.05 A	220 µF	2.047 in	52 mm	35 mm
KEMET ALH82A820CB550	550 V	1.088 Ohms	General Purpose	3000 Hrs	-40 C	105 ░C	1.26 in	32 mm	Radial Can - Snap-In	0.394 in	10 mm	Polar	20 %	2.95 A	30 mm	1.181 "	1.584 Ohm	Through Hole	1.06 A	0.082 mF
KEMET ALH82A131CE600	600 V	726 mOhms	General Purpose	3000 Hrs	-40 C	105 ░C			Radial Can - Snap-In	0.394 in	10 mm	Polar	20 %	3.93 A	30 mm	1.181 "	1.07 Ohm	Through Hole	1.4 A	130 µF	1.85 in	47 mm
