9275 Series
Manufacturer: Belden Inc.
Beta
⌘K

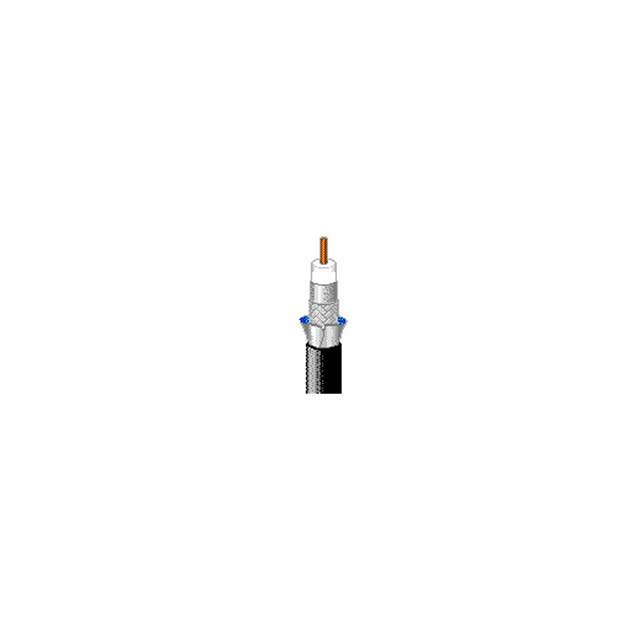

COAX 75OHM RG59 20AWG
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Shield Coverage | VoP, Velocity of Propagation | Dielectric Material | Shield Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Material | Jacket Color | Shield Type | Length [x] | Length [x] | Wire Gauge | Cable Group | Impedance | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 80 °C | -40 C | 40 % 100 % | 83 | Foam Polyethylene (FPE) | Aluminum | 0.144 in | 3.66 mm | Copper Coated Steel | Black | Braid Foil | 304.8 m | 1000 ft | 20 AWG | RG-59 | 75 Ohms | Poly-Vinyl Chloride (PVC) | 6.02 mm | 0.237 " | Solid | Coaxial |
Belden Inc. | 80 °C | -40 C | 40 % 100 % | 83 | Foam Polyethylene (FPE) | Aluminum | 0.144 in | 3.66 mm | Copper Coated Steel | Black | Braid Foil | 304.8 m | 1000 ft | 20 AWG | RG-59 | 75 Ohms | Poly-Vinyl Chloride (PVC) | 6.02 mm | 0.237 " | Solid | Coaxial |
