QMA Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

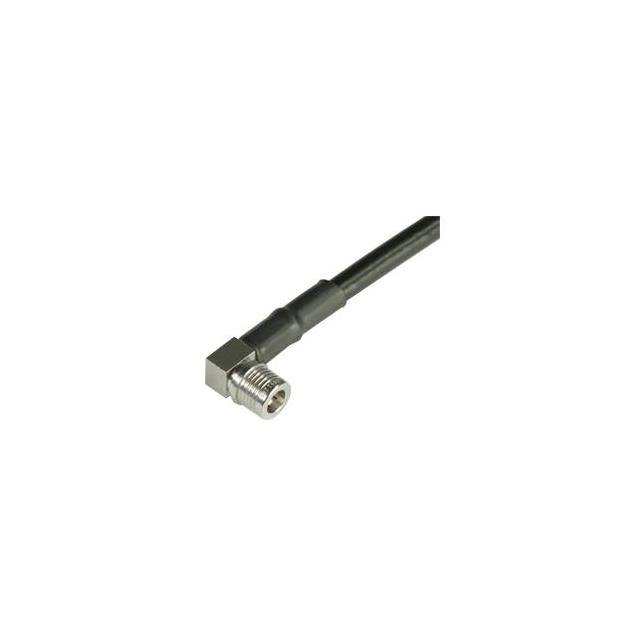

RF CONNECTORS / COAXIAL CONNECTORS QMA RIGHT ANGLE CABLE PLUG(M)
| Part | Voltage Rating | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Plating | Dielectric Material | Fastening Type | Frequency - Max [Max] | Number of Ports | Shield Termination | Mounting Type | Contact Termination | Housing Color | Impedance | Cable Group | Connector Type | Center Contact Material | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | 480 V | Gold | -40 C | 105 ░C | Brass | Gold | Polytetrafluoroethylene (PTFE) | Push-Pull | 18 GHz | 1 | Solder | Free Hanging (In-Line) Right Angle | Solder | Gold | 50 Ohms | RG-405 (.086 Semi Rigid) | Plug Male Pin | Brass | |
 Huber+Suhner, Inc. | 480 V | White Bronze | -40 C | 85 °C | Brass | Gold | Snap-On | 18 GHz | 1 | Solder | Panel Mount | Solder | Silver | 50 Ohms | Female Socket Jack | Beryllium Copper | Bulkhead - Rear Side Nut | ||
 Huber+Suhner, Inc. | 480 V | White Bronze | -40 C | 85 °C | Brass | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Snap-On | 6000 MHz | 1 | Solder | Panel Mount | Solder | Silver | 50 Ohms | Female Socket Jack | Beryllium Copper | Bulkhead - Rear Side Nut | |
 Huber+Suhner, Inc. | Push-Pull | 18 GHz | 1 | Solder | Through Hole | Solder | Gold | 50 Ohms | Female Socket Jack | Beryllium Copper |
