ISOUSB211 Series

Low-emission isolated USB repeater supporting low, high and full speed

Catalog

Low-emission isolated USB repeater supporting low, high and full speed

Part	Data Rate (Max)	Current - Supply	Output	Signal Conditioning	Operating Temperature [Min]	Operating Temperature [Max]	Number of Channels	Delay Time	Mounting Type	Input	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Package / Case [custom]	Package / Case [custom]	Package / Case	Applications

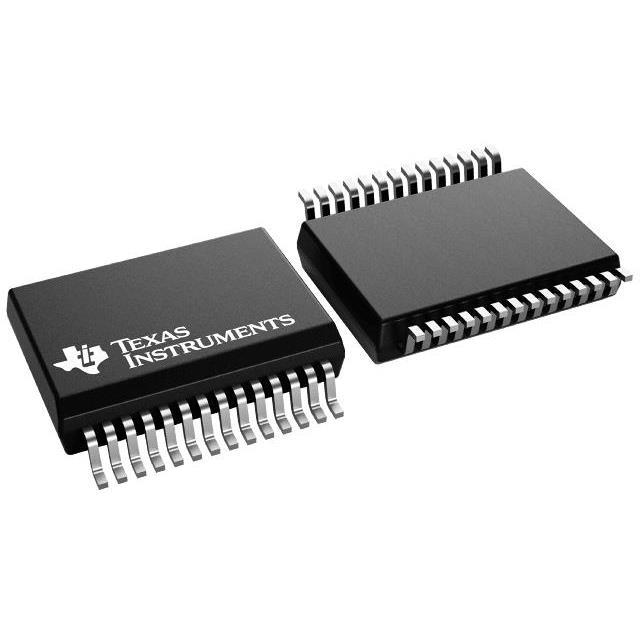

Texas Instruments ISOUSB211DPR	480 Mbps	85 mA	Differential	Input Equalization Output Pre-Emphasis	-40 °C	125 °C	1	358 ns	Surface Mount	Differential	1.94 V 3.6 V 5.5 V	1.71 V 2.4 V 3 V 4.25 V	28-SSOP	7.5 mm	0.295 in	28-BSSOP	USB

Catalog

Low-emission isolated USB repeater supporting low, high and full speed

Key Features

• Compliant to USB 2.0Supports low speed (1.5 Mbps) , full speed (12 Mbps) and high speed (480 Mbps) signalingDoes not need external crystal or clock inputAutomatic speed and connection detectionSupports L1 (sleep) and L2 (suspend) low-power statesProgrammable equalization to compensate board trace loss in high speed modeCDP advertising on downstream sideSupply OK indication on opposite sideSupports automatic role reversal for USB On-The-Go (OTG) and Type-C® Dual Role Port (DRP) designsHigh CMTI: 100 kV/µs±8 kV IEC 61000-4-2 contact discharge protection across isolation barrierV BUS voltage range: 4.25 V to 5.5 V3.3 V and 1.8 V internal LDO sMeets CISPR32 class B emissions limitsAmbient temperature range: –40°C to +125°CSmall footprint 28-SSOP packageSafety-related certifications:7071-V PK V IOTM and 2121-V PK V IORM (Reinforced) per DIN EN IEC 60747-17 (VDE 0884-17)5000-V RMS isolation for 1 minute per UL 1577IEC 62368-1, IEC 60601-1 and IEC 61010-1 certificationsCQC, TUV and CSA certificationsCompliant to USB 2.0Supports low speed (1.5 Mbps) , full speed (12 Mbps) and high speed (480 Mbps) signalingDoes not need external crystal or clock inputAutomatic speed and connection detectionSupports L1 (sleep) and L2 (suspend) low-power statesProgrammable equalization to compensate board trace loss in high speed modeCDP advertising on downstream sideSupply OK indication on opposite sideSupports automatic role reversal for USB On-The-Go (OTG) and Type-C® Dual Role Port (DRP) designsHigh CMTI: 100 kV/µs±8 kV IEC 61000-4-2 contact discharge protection across isolation barrierV BUS voltage range: 4.25 V to 5.5 V3.3 V and 1.8 V internal LDO sMeets CISPR32 class B emissions limitsAmbient temperature range: –40°C to +125°CSmall footprint 28-SSOP packageSafety-related certifications:7071-V PK V IOTM and 2121-V PK V IORM (Reinforced) per DIN EN IEC 60747-17 (VDE 0884-17)5000-V RMS isolation for 1 minute per UL 1577IEC 62368-1, IEC 60601-1 and IEC 61010-1 certificationsCQC, TUV and CSA certifications

Description

ISOUSB211 is a galvanically-isolated USB 2.0 compliant repeater supporting low speed (1.5 Mbps) , full speed (12 Mbps) and high speed (480 Mbps) signaling rates. The device supports automatic connect and speed detection, reflection of pull-ups/pull-downs, and link power management allowing drop-in USB hub, host, peripheral and cable isolation. The device also supports automatic role reversal - if after disconnect, a new connect is detected on the Upstream facing port, then the Upstream and Downstream port definitions are reversed. This feature enables the device to support USB On-The-Go (OTG) and Type-C Dual Role Port (DRP) implementations. The ISOUSB211 has inbuilt programmable equalization to cancel signal loss caused by board traces, which helps in meeting USB2.0 high-speed TX and RX eye-diagram templates. This device uses a silicon dioxide (SiO 2) insulation barrier with a withstand voltage of up to 5000 V RMS and a working voltage of 1500 V RMS. Used in conjunction with isolated power supplies, the device protects against high voltage, and prevents noise currents from the bus from entering the local ground. The ISOUSB211 device is available for reinforced isolation. It supports a wide ambient temperature range of –40°C to +125°C. The device is available in the small foot-print SSOP-28 (28-DP) package. ISOUSB211 is a galvanically-isolated USB 2.0 compliant repeater supporting low speed (1.5 Mbps) , full speed (12 Mbps) and high speed (480 Mbps) signaling rates. The device supports automatic connect and speed detection, reflection of pull-ups/pull-downs, and link power management allowing drop-in USB hub, host, peripheral and cable isolation. The device also supports automatic role reversal - if after disconnect, a new connect is detected on the Upstream facing port, then the Upstream and Downstream port definitions are reversed. This feature enables the device to support USB On-The-Go (OTG) and Type-C Dual Role Port (DRP) implementations. The ISOUSB211 has inbuilt programmable equalization to cancel signal loss caused by board traces, which helps in meeting USB2.0 high-speed TX and RX eye-diagram templates. This device uses a silicon dioxide (SiO 2) insulation barrier with a withstand voltage of up to 5000 V RMS and a working voltage of 1500 V RMS. Used in conjunction with isolated power supplies, the device protects against high voltage, and prevents noise currents from the bus from entering the local ground. The ISOUSB211 device is available for reinforced isolation. It supports a wide ambient temperature range of –40°C to +125°C. The device is available in the small foot-print SSOP-28 (28-DP) package.
