PVA2 Series

Catalog

SWITCH PUSH DPDT 0.1A 32V

Part	Electrical Life	Actuator Type	Mounting Type	Current Rating (Amps)	Actuator Marking	Switch Function	Voltage Rating - DC	Type	Circuit	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]
LITTELFUSE PVA2EEH1 1.7N V2	100000 Cycles	Plunger for Cap	Through Hole	100 mA	No Marking	On-On	32 V	Keyswitch	DPDT	PC Pin	85 °C	-40 C

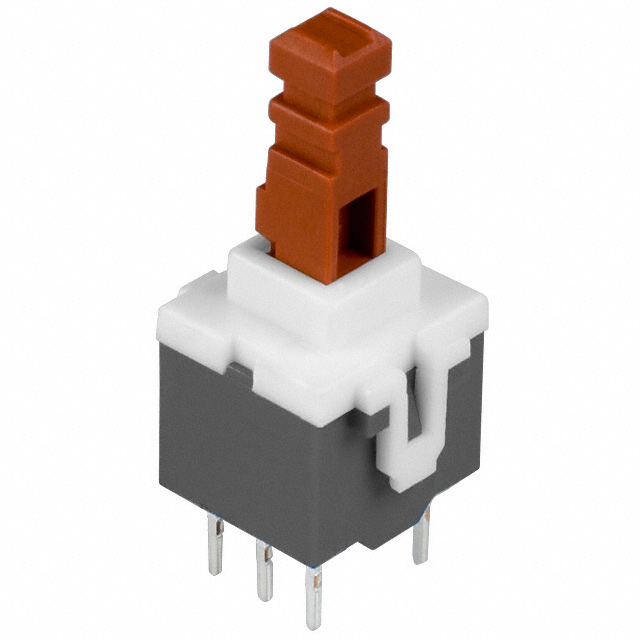

LITTELFUSE PVA2 OA H3 1.7N V2	100000 Cycles	Plunger for Cap	Through Hole	100 mA	No Marking	On-Mom	32 V	Keyswitch	DPDT	PC Pin	85 °C	-40 C
LITTELFUSE PVA20AH5SNA V2	100000 Cycles	Plunger Square	Through Hole	100 mA	No Marking	On-Mom	32 V	Keyswitch	DPDT	PC Pin	85 °C	-40 C
LITTELFUSE PVA20AH11.7NSNA V2	100000 Cycles	Plunger for Cap	Through Hole	100 mA	No Marking	On-Mom	32 V	Keyswitch	DPDT	PC Pin	85 °C	-40 C

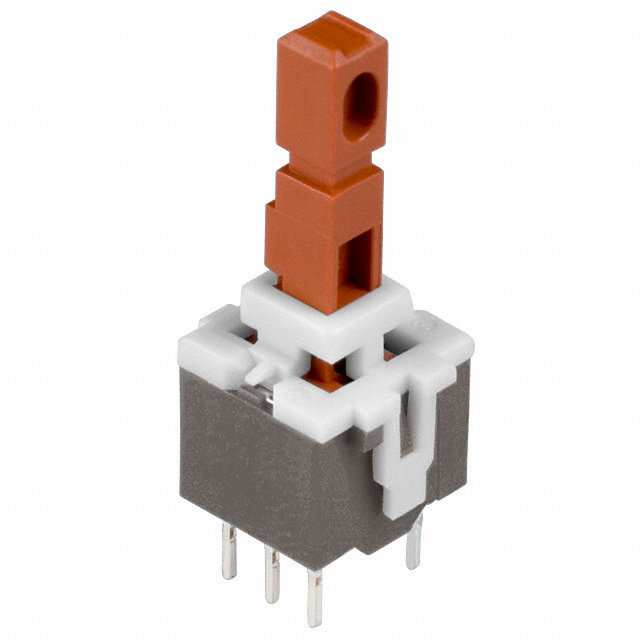

LITTELFUSE PVA2 OA H2 1.7N V2	100000 Cycles	Plunger for Cap	Through Hole	100 mA	No Marking	On-Mom	32 V	Keyswitch	DPDT	PC Pin	85 °C	-40 C

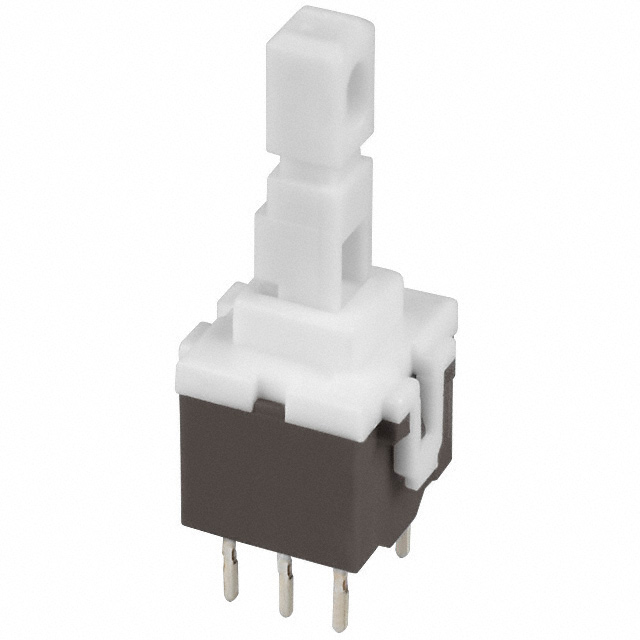

LITTELFUSE PVA2 EE H2 1.7N V2	100000 Cycles	Plunger for Cap	Through Hole	100 mA	No Marking	On-On	32 V	Keyswitch	DPDT	PC Pin	85 °C	-40 C
