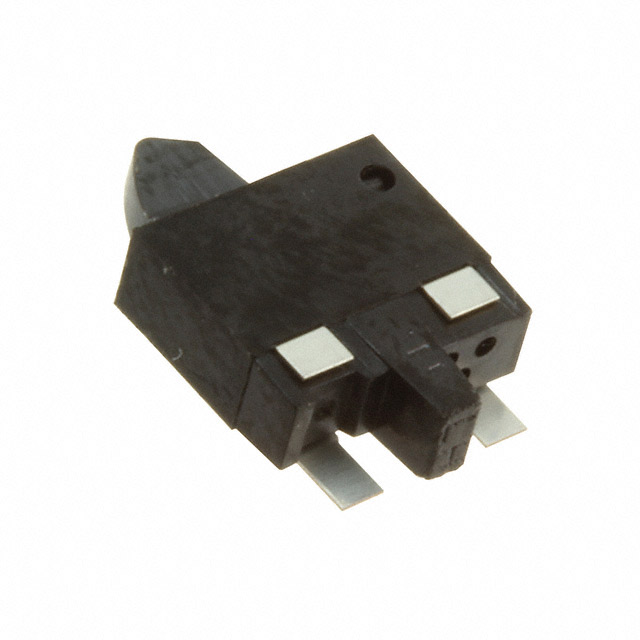

ESE-22 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
SWITCH DETECTOR SPST-NO 0.01A 5V
| Part | Features | Termination Style | Voltage Rating - DC | Electrical Life | Current Rating (Amps) | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Actuator Type | Circuit | Mounting Type | Switch Function | Operating Force | Operating Position | Operating Position | Operating Position [custom] | Operating Position [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Board Guide | SMD (SMT) Tab | 5 V | 50000 Cycles | 10 mA | -10 °C | 158 °F | Angled Toggle (Detector) | SPST-NO | Surface Mount | Off-Mom | 30 gf | 0.232 in | 5.9 mm | ||
 Panasonic Industrial Automation Sales | Board Guide | SMD (SMT) Tab | 5 V | 50000 Cycles | 10 mA | -10 °C | 158 °F | Angled Toggle (Detector) | SPST-NO | Surface Mount Right Angle | Off-Mom | 0.091 in | 2.3 mm | |||
Panasonic Industrial Automation Sales | Board Guide | SMD (SMT) Tab | 5 V | 50000 Cycles | 10 mA | -10 °C | 158 °F | Angled Toggle (Detector) | SPST-NO | Surface Mount Right Angle | Off-Mom | 30 gf | 0.091 in | 2.3 mm | ||
Panasonic Industrial Automation Sales | Board Guide | SMD (SMT) Tab | 5 V | 50000 Cycles | 10 mA | -10 °C | 158 °F | Angled Toggle (Detector) | SPST-NO | Surface Mount Right Angle | Off-Mom | 30 gf | 0.091 in | 2.3 mm | ||
Panasonic Industrial Automation Sales | SMD (SMT) Tab | 5 V | 50000 Cycles | 10 mA | -10 °C | 158 °F | Angled Toggle (Detector) | SPST-NO | Surface Mount Right Angle | Off-Mom | 30 gf | 0.055 in | 1.4 mm | |||
Panasonic Industrial Automation Sales | Board Guide | SMD (SMT) Tab | 5 V | 50000 Cycles | 10 mA | -10 °C | 158 °F | Angled Toggle (Detector) | SPST-NO | Surface Mount Right Angle | Off-Mom | 30 gf | 0.091 in | 2.3 mm | ||
Panasonic Industrial Automation Sales | Board Guide | SMD (SMT) Tab | 5 V | 50000 Cycles | 10 mA | -10 °C | 158 °F | Angled Toggle (Detector) | SPST-NO | Surface Mount Right Angle | Off-Mom | 30 gf | 0.091 in | 2.3 mm | ||
Panasonic Industrial Automation Sales | SMD (SMT) Tab | 5 V | 50000 Cycles | 10 mA | -10 °C | 158 °F | Angled Toggle (Detector) | SPST-NO | Surface Mount Right Angle | Off-Mom | 30 gf | 0.055 in | 1.4 mm | |||
Panasonic Industrial Automation Sales | Solder Lug | 5 V | 50000 Cycles | 10 mA | -10 °C | 158 °F | Angled Toggle (Detector) | SPST-NO | Through Hole | Off-Mom | 30 gf | 0.083 in | 2.1 mm | |||
Panasonic Industrial Automation Sales | Board Guide | SMD (SMT) Tab | 5 V | 50000 Cycles | 10 mA | -10 °C | 158 °F | Angled Toggle (Detector) | SPST-NO | Surface Mount | Off-Mom | 30 gf | 0.232 in | 5.9 mm |
