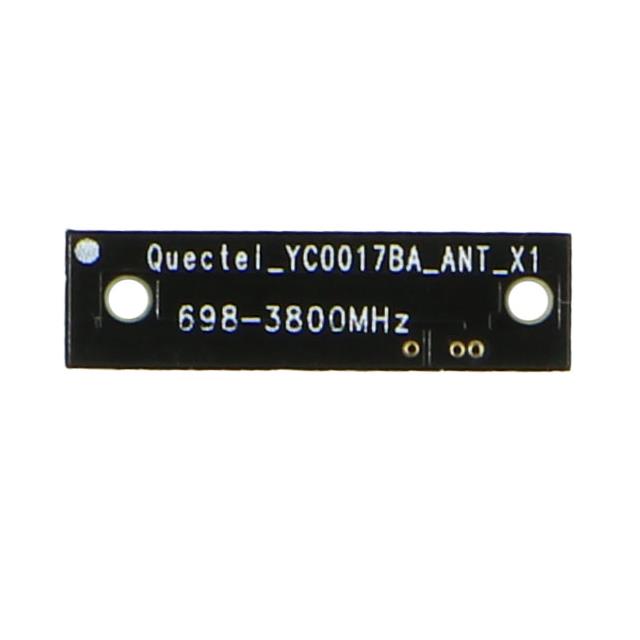

YC0017BA Series
Manufacturer: Quectel
Beta
⌘K
EMBEDDED CELLULAR ANTENNA
| Part | RF Family/Standard | Antenna Type | Frequency (Center/Band) | Applications | Frequency Range [Min] | Frequency Range [Max] | Gain | Mounting Type | Number of Bands | VSWR | Height (Max) [z] | Height (Max) [z] | Frequency Group | Termination | Supplied Contents | For Use With/Related Products | Utilized IC / Part | Type | Frequency [Min] | Frequency [Max] | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Quectel | Cellular | Chip | 2.205 GHz 3.6 GHz 830 MHz | LTE | 1.71 GHz 3.4 GHz 700 MHz | 2.7 GHz 3.8 GHz 960 MHz | 4 dBi | Surface Mount | 3 | 4 | 3 mm | 0.118 in | Wide Band | Solder | |||||||
 Quectel | Board(s) | YC0017BA | YC0017BA | Antenna | 698 MHz | 3.8 GHz | Board(s) |
