745-106 Series

Manufacturer: EDAC Inc.

Catalog

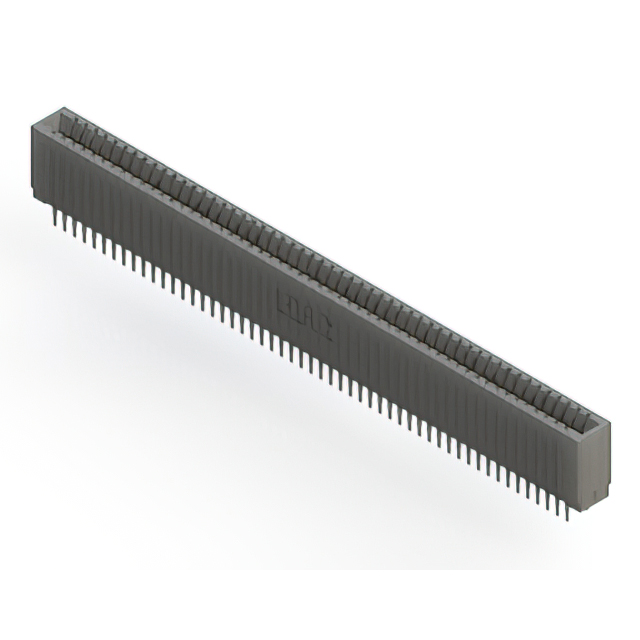

CONN EDGE DUAL FML 106POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Number of Rows [custom]	Pitch	Pitch	Contact Finish	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Color	Card Type	Read Out	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Contact Material	Contact Type	Gender	Termination
EDAC Inc. 745-106-540-201	Polyester Thermoplastic	2	2	0.1 "	2.54 mm	Gold	53	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	Dual	Through Hole	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	106	Copper Alloy	Cantilever	Female	Press-Fit Wire Wrap
EDAC Inc. 745-106-541-201	Polyester Thermoplastic	2	2	0.1 "	2.54 mm	Gold	53	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	Dual	Through Hole	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	106	Copper Alloy	Cantilever	Female	Press-Fit Wire Wrap
EDAC Inc. 745-106-540-206	Polyester Thermoplastic	2	2	0.1 "	2.54 mm	Gold	53	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	Dual	Through Hole	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	106	Copper Alloy	Cantilever	Female	Press-Fit Wire Wrap
EDAC Inc. 745-106-545-201	Polyester Thermoplastic	2	2	0.1 "	2.54 mm	Gold	53	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	Dual	Through Hole	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	106	Copper Alloy	Cantilever	Female	Press-Fit
EDAC Inc. 745-106-560-206	Polyester Thermoplastic	2	2	0.1 "	2.54 mm	Gold	53	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	Dual	Through Hole	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	106	Copper Alloy	Cantilever Make Before Break	Female	Press-Fit
EDAC Inc. 745-106-541-206	Polyester Thermoplastic	2	2	0.1 "	2.54 mm	Gold	53	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	Dual	Through Hole	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	106	Copper Alloy	Cantilever	Female	Press-Fit Wire Wrap
EDAC Inc. 745-106-522-201	Polyester Thermoplastic	2	2	0.1 "	2.54 mm	Gold	53	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	Dual	Through Hole	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	106	Copper Alloy	Cantilever	Female	Press-Fit
EDAC Inc. 745-106-525-201	Polyester Thermoplastic	2	2	0.1 "	2.54 mm	Gold	53	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	Dual	Through Hole	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	106	Copper Alloy	Cantilever	Female	Press-Fit
EDAC Inc. 745-106-545-206	Polyester Thermoplastic	2	2	0.1 "	2.54 mm	Gold	53	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	Dual	Through Hole	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	106	Copper Alloy	Cantilever	Female	Press-Fit
EDAC Inc. 745-106-520-206	Polyester Thermoplastic	2	2	0.1 "	2.54 mm	Gold	53	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	Dual	Through Hole	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	106	Copper Alloy	Cantilever	Female	Press-Fit
