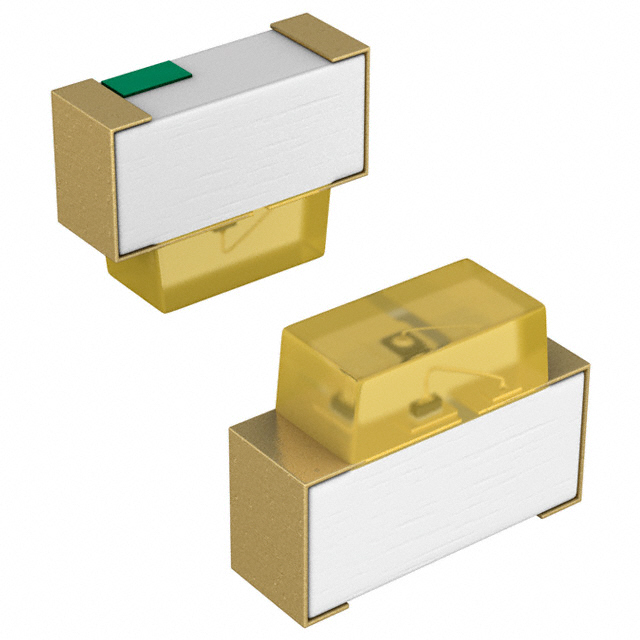

SMLA12 Series

Catalog

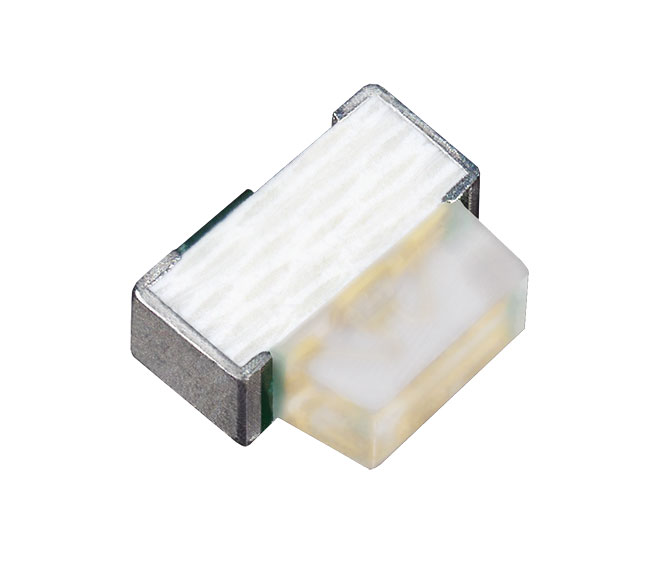

LED UNI-COLOR WHITE 2-PIN CHIP LED

Part	Lens Size [y]	Lens Size [x]	Current - Test	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Height (Max) [z]	Supplier Device Package	Color	Lens Style	Mounting Type	Wavelength - Dominant [custom]
Rohm Semiconductor SMLA12WBC7W1	0.68 mm	1.2 mm	5 mA	2-SMD No Lead	1.6 mm	1.15 mm	56 mcd	2.9 V	0.65 mm	1611(0605)	White	Rectangle with Flat Top	Right Angle Surface Mount
Rohm Semiconductor SMLA12WBC7W1HP	0.55 mm	1.2 mm	5 mA	2-SMD No Lead	1.6 mm	1.15 mm	56 mcd	2.9 V	0.65 mm	1611(0605)	White	Rectangle with Flat Top	Right Angle Surface Mount
Rohm Semiconductor SMLA12ENTT86	0.55 mm	1.2 mm	5 mA	2-SMD No Lead	1.6 mm	1.15 mm	140 mcd	3 V	0.65 mm	1611(0605)	Green	Rectangle with Flat Top	Right Angle Surface Mount	527 nm
