6301UE Series
Manufacturer: Belden Inc.
Beta
⌘K

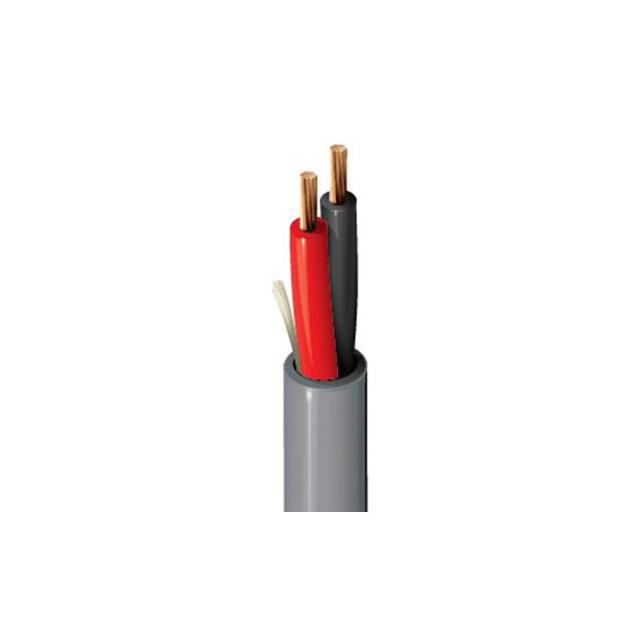

CABLE 3COND 18AWG NATURAL
| Part | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Voltage | Number of Conductors | Cable Type | Ratings | Usage | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Conductor Insulation | Length | Length | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Rip Cord | 0.163 in | 4.14 mm | Copper Bare | 300 VDC | 3 | Multi-Conductor | UL Style CMP | Security Sound | 18 AWG | 75 ░C | 0 °C | 26 AWG | 7 | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 0.381 mm | 0.015 in | Low Smoke Poly-Vinyl Chloride (LSPVC) | 304.8 m | 1000 ft | Natural |
