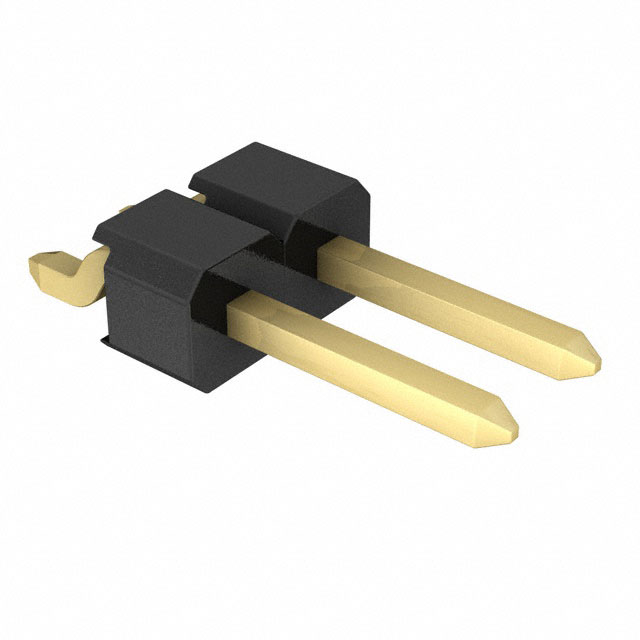

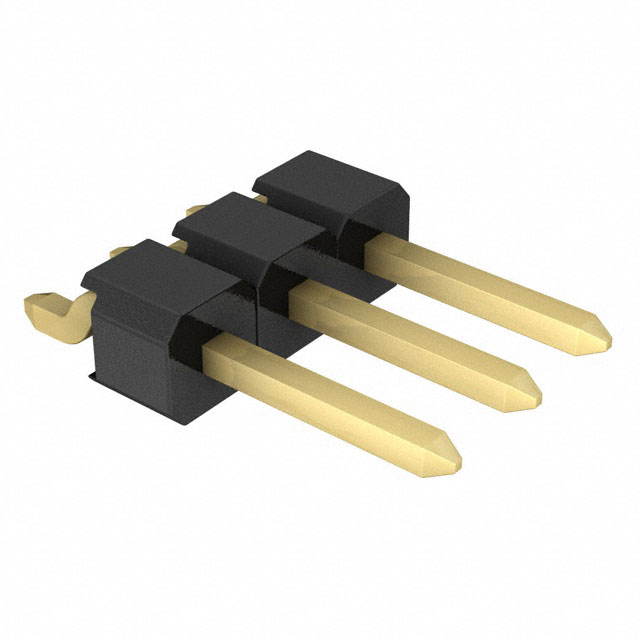

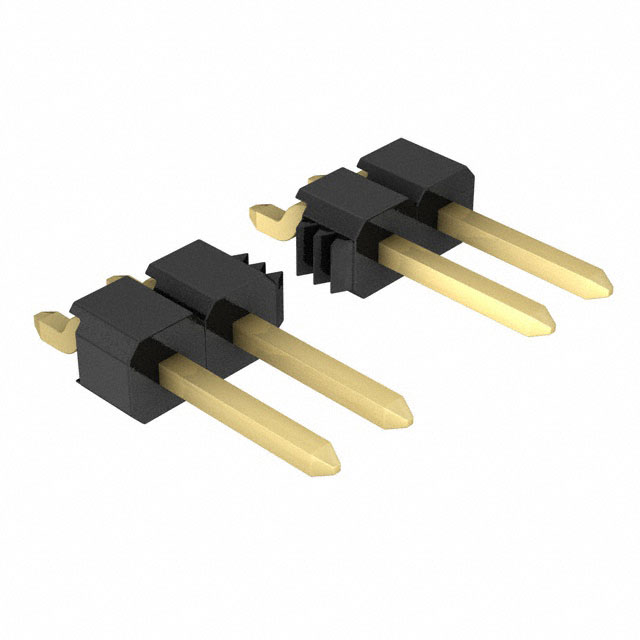

M20-889 Series
Manufacturer: Harwin Inc.
Beta
⌘K
CONN, R/A HEADER, 4POS, 1ROW, 2.54MM ROHS COMPLIANT: YES
| Part | Contact Finish - Mating | Number of Rows | Contact Length - Mating | Contact Length - Mating | Number of Positions | Current Rating (Amps) | Contact Finish Thickness - Mating | Insulation Material | Shrouding | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Insulation Color | Connector Type | Contact Type | Fastening Type | Contact Shape | Contact Material | Number of Positions Loaded | Insulation Height | Insulation Height | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Gold | 1 | 6 mm | 0.236 in | 4 | 3 A | Flash | Glass Filled Nylon 9T Polyamide (PA9T) | Unshrouded | UL94 V-0 | 0.1 " | 2.54 mm | Black | Header | Male Pin | Push-Pull | Square | Brass | All | 0.098 " | 2.5 mm | Solder | -40 C | 105 ░C | Board to Board Cable | Right Angle Surface Mount |
 Harwin Inc. | Gold | 1 | 6 mm | 0.236 in | 5 | 3 A | Flash | Glass Filled Nylon 9T Polyamide (PA9T) | Unshrouded | UL94 V-0 | 0.1 " | 2.54 mm | Black | Header | Male Pin | Push-Pull | Square | Brass | All | 0.098 " | 2.5 mm | Solder | -40 C | 105 ░C | Board to Board Cable | Right Angle Surface Mount |
Harwin Inc. | Gold | 1 | 6 mm | 0.236 in | 4 | 3 A | Flash | Glass Filled Nylon 9T Polyamide (PA9T) | Unshrouded | UL94 V-0 | 0.1 " | 2.54 mm | Black | Header | Male Pin | Push-Pull | Square | Brass | All | 0.098 " | 2.5 mm | Solder | -40 C | 105 ░C | Board to Board Cable | Right Angle Surface Mount |
 Harwin Inc. | Gold | 1 | 6 mm | 0.236 in | 2 | 3 A | Flash | Glass Filled Nylon 9T Polyamide (PA9T) | Unshrouded | UL94 V-0 | 0.1 " | 2.54 mm | Black | Header | Male Pin | Push-Pull | Square | Brass | All | 0.098 " | 2.5 mm | Solder | -40 C | 105 ░C | Board to Board Cable | Right Angle Surface Mount |
Harwin Inc. | Gold | 1 | 6 mm | 0.236 in | 5 | 3 A | Flash | Glass Filled Nylon 9T Polyamide (PA9T) | Unshrouded | UL94 V-0 | 0.1 " | 2.54 mm | Black | Header | Male Pin | Push-Pull | Square | Brass | All | 0.098 " | 2.5 mm | Solder | -40 C | 105 ░C | Board to Board Cable | Right Angle Surface Mount |
 Harwin Inc. | Gold | 1 | 6 mm | 0.236 in | 3 A | Flash | Glass Filled Nylon 9T Polyamide (PA9T) | Unshrouded | UL94 V-0 | 0.1 " | 2.54 mm | Black | Header | Male Pin | Push-Pull | Square | Brass | All | 0.098 " | 2.5 mm | Solder | -40 C | 105 ░C | Board to Board Cable | Right Angle Surface Mount | |
Harwin Inc. | Gold | 1 | 6 mm | 0.236 in | 2 | 3 A | Flash | Glass Filled Nylon 9T Polyamide (PA9T) | Unshrouded | UL94 V-0 | 0.1 " | 2.54 mm | Black | Header | Male Pin | Push-Pull | Square | Brass | All | 0.098 " | 2.5 mm | Solder | -40 C | 105 ░C | Board to Board Cable | Right Angle Surface Mount |
 Harwin Inc. | Gold | 1 | 6 mm | 0.236 in | 8 | 3 A | Flash | Glass Filled Nylon 9T Polyamide (PA9T) | Unshrouded | UL94 V-0 | 0.1 " | 2.54 mm | Black | Header | Male Pin | Push-Pull | Square | Brass | All | 0.098 " | 2.5 mm | Solder | -40 C | 105 ░C | Board to Board Cable | Right Angle Surface Mount |
 Harwin Inc. | Gold | 1 | 6 mm | 0.236 in | 3 A | Flash | Glass Filled Nylon 9T Polyamide (PA9T) | Unshrouded | UL94 V-0 | 0.1 " | 2.54 mm | Black | Header | Male Pin | Push-Pull | Square | Brass | All | 0.098 " | 2.5 mm | Solder | -40 C | 105 ░C | Board to Board Cable | Right Angle Surface Mount | |
Harwin Inc. | Gold | 1 | 6 mm | 0.236 in | 6 | 3 A | Flash | Glass Filled Nylon 9T Polyamide (PA9T) | Unshrouded | UL94 V-0 | 0.1 " | 2.54 mm | Black | Header | Male Pin | Push-Pull | Square | Brass | All | 0.098 " | 2.5 mm | Solder | -40 C | 105 ░C | Board to Board Cable | Right Angle Surface Mount |
