1903813 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

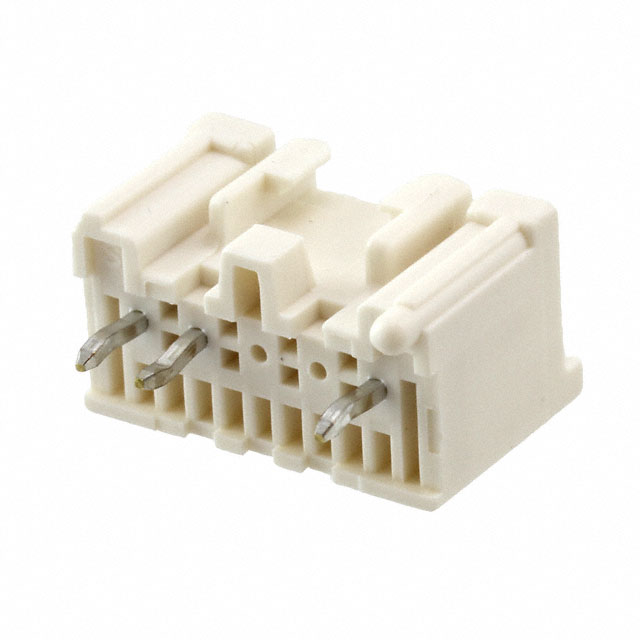

CONN HEADER VERT 5POS 2.5MM
| Part | Shrouding | Insulation Height | Insulation Height | Number of Rows | Fastening Type | Insulation Color | Number of Positions Loaded | Contact Shape | Contact Length - Post | Contact Length - Post [x] | Voltage Rating | Overall Contact Length | Overall Contact Length | Applications | Current Rating (Amps) | Contact Material | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Connector Type | Contact Length - Mating | Contact Length - Mating | Features | Mounting Type | Termination | Style | Contact Finish - Post | Insulation Material | Mated Stacking Heights | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | 9.8 mm | 0.386 in | 1 | Latch Holder | Natural | 3 | Square | 3.2 mm | 0.126 in | 50 V | 0.41 in | 10.41 mm | General Purpose | 3 A | Copper Alloy | Male Pin | -30 ░C | 105 ░C | 2.5 mm | 0.098 in | Header | 0.185 in | 4.7 mm | Board Guide | Through Hole | Kinked Pin Solder | Board to Cable/Wire | Tin | Polyamide (PA66) Nylon 6/6 Glass Filled | 13.7 mm | UL94 V-2 |
