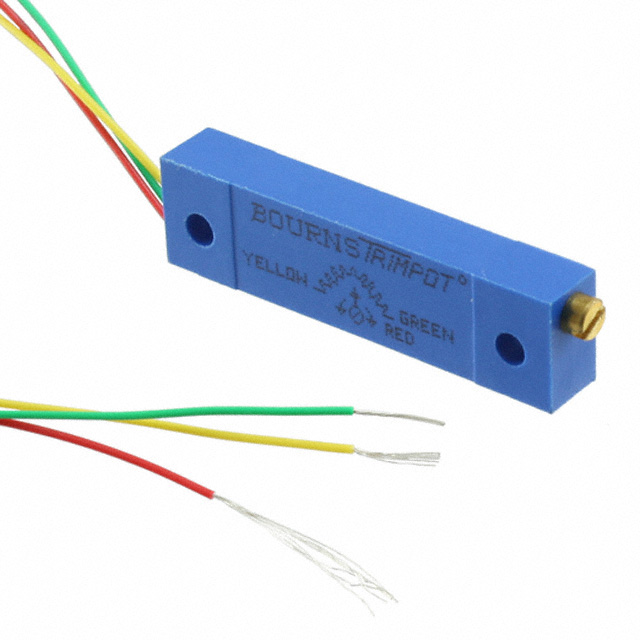

3057L Series

Catalog

TRIMMER 20K OHM 1W WIRE LEADS

Part	Termination Style	Resistance	Tolerance	Adjustment Type	Power (Watts)	Mounting Type	Temperature Coefficient	Number of Turns	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Resistive Material
Bourns Inc. 3057L-1-203M	Wire Leads	20 kOhms	5 %	Side Adjustment	1 W	Panel Mount Wire Leads	50 ppm/░C	22	0.315 in	4.83 mm	0.19 in	8 mm	Wirewound
Bourns Inc. 3057L-1-501	Wire Leads	0.5 kOhms	5 %	Side Adjustment	1 W	Chassis Mount	50 ppm/░C	22	0.315 in	4.83 mm	0.19 in	8 mm	Wirewound
Bourns Inc. 3057L-1-500M	Wire Leads	50 Ohms	5 %	Side Adjustment	1 W	Panel Mount Wire Leads	50 ppm/░C	22	0.315 in	4.83 mm	0.19 in	8 mm	Wirewound
Bourns Inc. 3057L-1-503M	Wire Leads	50000 Ohms	5 %	Side Adjustment	1 W	Panel Mount Wire Leads	50 ppm/░C	22	0.315 in	4.83 mm	0.19 in	8 mm	Wirewound
Bourns Inc. 3057L-1-200M	Wire Leads	20 Ohms	5 %	Side Adjustment	1 W	Panel Mount Wire Leads	50 ppm/░C	22	0.315 in	4.83 mm	0.19 in	8 mm	Wirewound
Bourns Inc. 3057L-1-101M	Wire Leads	100 Ohms	5 %	Side Adjustment	1 W	Panel Mount Wire Leads	50 ppm/░C	22	0.315 in	4.83 mm	0.19 in	8 mm	Wirewound
Bourns Inc. 3057L-1-203	Wire Leads	20 kOhms	5 %	Side Adjustment	1 W	Chassis Mount	50 ppm/░C	22	0.315 in	4.83 mm	0.19 in	8 mm	Wirewound
Bourns Inc. 3057L-1-201M	Wire Leads	200 Ohms	5 %	Side Adjustment	1 W	Panel Mount Wire Leads	50 ppm/░C	22	0.315 in	4.83 mm	0.19 in	8 mm	Wirewound
Bourns Inc. 3057L-1-201	Wire Leads	200 Ohms	5 %	Side Adjustment	1 W	Chassis Mount	50 ppm/░C	22	0.315 in	4.83 mm	0.19 in	8 mm	Wirewound
Bourns Inc. 3057L-1-253	Wire Leads	25 kOhms	5 %	Side Adjustment	1 W	Chassis Mount	50 ppm/░C	22	0.315 in	4.83 mm	0.19 in	8 mm	Wirewound
