ARK-2120 Series

Catalog

COMPACT FANLESS EMBEDDED IPC

Part	Digital I/O Lines	RAM Capacity/Installed	Video Outputs	Expansion Site/Bus	Storage Interface	USB	USB	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	RS-232 (422, 485) [custom]	RS-232 (422, 485) [custom]	RS-232 (422, 485) [custom]	Speed	Ethernet	Operating Temperature [Max]	Operating Temperature [Min]	Number of Cores	Form Factor	Core Processor	Cooling Type	RS-232 (422, 485)	Power (Watts)
Advantech Corporation ARK-2120L-S8A1E
Advantech Corporation ARK-2120L-S8A1E
Advantech Corporation ARK-2120F-S6A1E	8	0 GB 4 GB	DP HDMI LVDS VGA	Full mPCIe	2.5 in HDD SATA CFast SSD	5	USB 2.0	69.2 mm	10.41 in	2.72 "	264.5 mm	6	6	6	1.6 GHz	10 Mbps 100 Mbps 1000 Mbps	40 °C	0 °C	2	SO-DIMM	Intel Atom N2600
Advantech Corporation ARK-2120L-S6A1E	9	0 GB 4 GB	HDMI VGA	mPCIe	CompactFlash SSD SATA HDD		USB 2.0 (6)	133 mm	10.41 in	5.24 "	264.5 mm				1.6 GHz	10 Mbps 100 Mbps 1000 Mbps	60 °C	-20 ░C	2		Intel Atom N2600	Heat Sink	4
Advantech Corporation ARK-2120F-S6A1E	8	0 GB 4 GB	DP HDMI LVDS VGA	Full mPCIe	2.5 in HDD SATA CFast SSD	5	USB 2.0	69.2 mm	10.41 in	2.72 "	264.5 mm	6	6	6	1.6 GHz	10 Mbps 100 Mbps 1000 Mbps	40 °C	0 °C	2	SO-DIMM	Intel Atom N2600

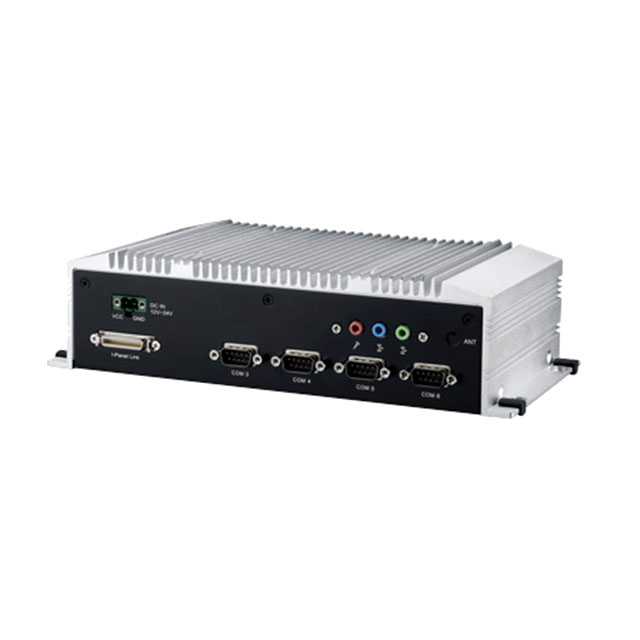

Advantech Corporation ARK-2120F-S8A1E	8	0 GB 4 GB	HDMI LVDS VGA	mPCIe	CompactFlash SSD SATA HDD	5	USB 2.0	133 mm	10.41 in	5.24 "	264.5 mm	6	6	6	1.86 GHz	10 Mbps 100 Mbps 1000 Mbps	60 °C	-20 ░C	2		Intel Atom D2550	Heat Sink		9.2 W
Advantech Corporation ARK-2120L-S6A1E	9	0 GB 4 GB	HDMI VGA	mPCIe	CompactFlash SSD SATA HDD		USB 2.0 (6)	133 mm	10.41 in	5.24 "	264.5 mm				1.6 GHz	10 Mbps 100 Mbps 1000 Mbps	60 °C	-20 ░C	2		Intel Atom N2600	Heat Sink	4
Advantech Corporation ARK-2120F-S8A1E	8	0 GB 4 GB	HDMI LVDS VGA	mPCIe	CompactFlash SSD SATA HDD	5	USB 2.0	133 mm	10.41 in	5.24 "	264.5 mm	6	6	6	1.86 GHz	10 Mbps 100 Mbps 1000 Mbps	60 °C	-20 ░C	2		Intel Atom D2550	Heat Sink		9.2 W
