6209-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

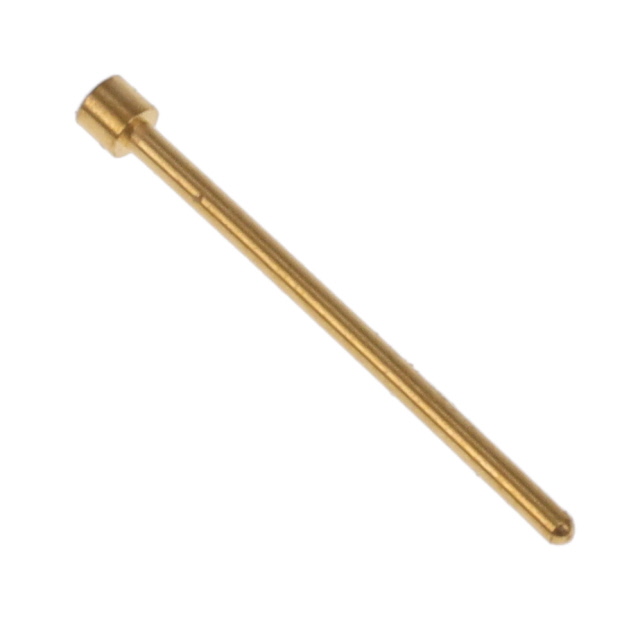

NAIL HEAD PIN
| Part | Insulation | Mounting Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Contact Material | Terminal Type | Terminal Style | Length - Overall | Length - Overall [x] | Termination | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Non-Insulated | Through Hole | 0.015 in | 0.38 mm | Brass Alloy | PC Pin | Single End | 8 mm | 0.315 in | Solder | 0.48 mm | 0.019 " | 0.29 in | 7.37 mm | Gold | 0.25 Ám | 10 Áin |
