M300-MC3 Series
Manufacturer: Harwin Inc.
Beta
⌘K

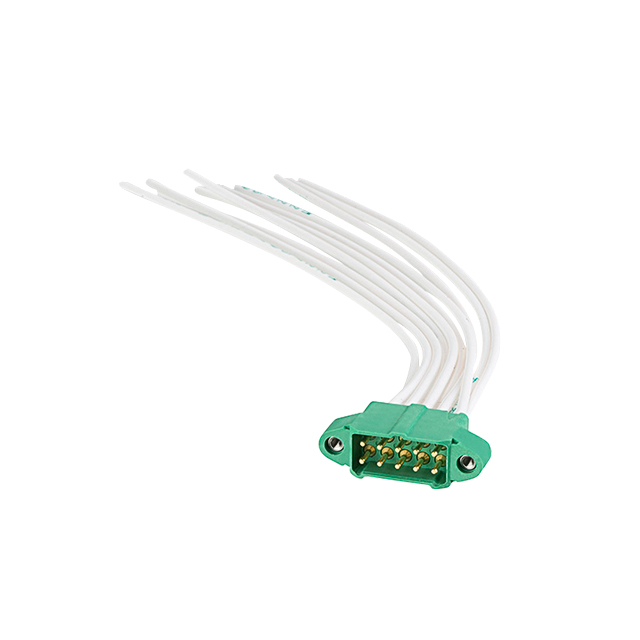

5+5 POS. MALE DIL 22AWG CABLE ASSEMBLY, 300MM, SINGLE-END, JACKSCREWS
| Part | Shielding | Length [x] | Length [x] | Length [x] | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Features | Number of Rows [custom] | Number of Positions | Cable Termination | Pitch - Connector | Pitch - Connector | Contact Finish | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Unshielded | 0.984 ft | 300 mm | 11.81 in | Plug to Individual Wire Leads | 5.9 µin | 0.15 µm | Mating Flange Polarizing Key | 2 | 10 | Crimp | 0.118 in | 3 mm | Gold | |||
Harwin Inc. | Unshielded | 1.48 ' | 0.45 m | Plug to Individual Wire Leads | 5.9 µin | 0.15 µm | Mating Flange Polarizing Key | 2 | 10 | Crimp | 0.118 in | 3 mm | Gold | ||||
 Harwin Inc. | Unshielded | Plug to Individual Wire Leads | 5.9 µin | 0.15 µm | Mating Flange Polarizing Key | 2 | 10 | Crimp | 0.118 in | 3 mm | Gold | 5.91 in | 0.492 ft | 150 mm |
