CF2 Series

Catalog

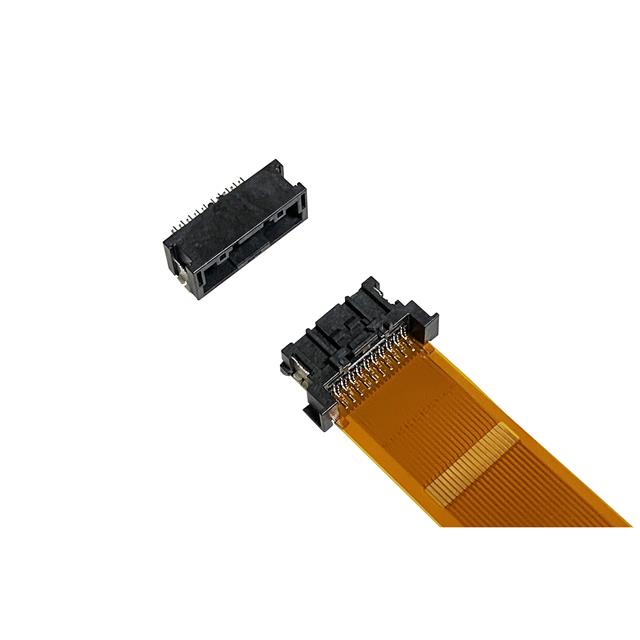

FFC & FPC CONNECTORS 1A 50VDC 800VAC 28-PIN CONNECTOR 37.8MM

Part	Actuator Color	Mating Cycles	Housing Color	Housing Material	Pitch	Pitch	Flat Flex Type	Contact Finish	Voltage Rating	Features	Contact Material	Height Above Board [z]	Height Above Board [z]	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Connector/Contact Type	Mounting Type	Number of Positions	Actuator Material
Panasonic Electronic Components AYC5F2810	Black	500	Black	Liquid Crystal Polymer (LCP)	2.2 mm	0.087 in	FPC	Tin	50 V	Solder Retention	Copper Alloy	5.2 mm	0.205 in	Solder	125 °C	-40 C	UL94 V-0	Contacts Top and Bottom	Right Angle Surface Mount	28	Liquid Crystal Polymer (LCP)
