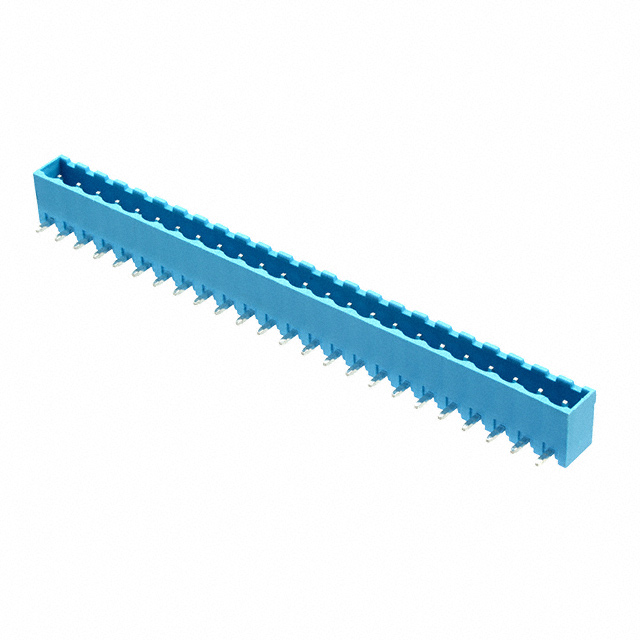

TBP01R1 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

TERMINAL BLOCK, PLUGGABLE, 5.08,

Part	Header Orientation	Type	Current - UL	Color	Mounting Type	Pitch	Pitch	Number of Positions	Termination Style	Voltage - IEC	Positions Per Level [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Current - IEC	Voltage - UL	Contact Mating Finish	Number of Levels	Positions Per Level	Insulation Height	Insulation Height	Contact Material	Contact Tail Length	Contact Tail Length	Material Flammability Rating	Features
Same Sky (Formerly CUI Devices) TBP01R1-508-24BE	90° Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	0.2 in	24	Solder	320 V	24	-40 C	105 ░C	20 A	300 V	Tin	1
Same Sky (Formerly CUI Devices) TBP01R1-508-08BE	90° Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	0.2 in	8	Solder	320 V		-40 C	105 ░C	20 A	300 V	Tin	1	8
Same Sky (Formerly CUI Devices) TBP01R1-508-02BE	90° Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	0.2 in	2	Solder	320 V		-40 C	105 ░C	20 A	300 V	Tin	1	2	0.335 "	8.51 mm	Copper Alloy	0.157 in	4 mm	UL94 V-0

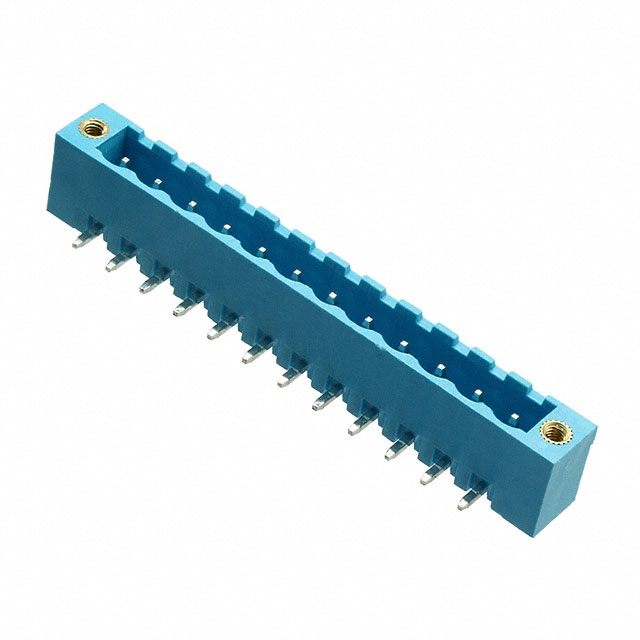

Same Sky (Formerly CUI Devices) TBP01R1W-508-12BE	90° Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	0.2 in	12	Solder	320 V		-40 C	105 ░C	20 A	300 V	Tin	1	12							Mating Flange
Same Sky (Formerly CUI Devices) TBP01R1W-508-08BE	90° Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	0.2 in	8	Solder	320 V		-40 C	105 ░C	20 A	300 V	Tin	1	8							Mating Flange
Same Sky (Formerly CUI Devices) TBP01R1-508-10BE	90° Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	0.2 in	10	Solder	320 V		-40 C	105 ░C	20 A	300 V	Tin	1	10

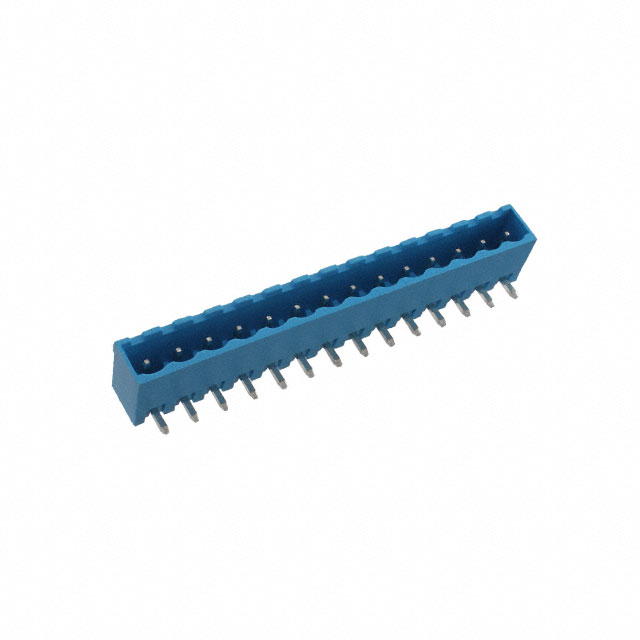

Same Sky (Formerly CUI Devices) TBP01R1-508-14BE	90° Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	0.2 in	14	Solder	320 V		-40 C	105 ░C	20 A	300 V	Tin	1	14	0.335 "	8.51 mm	Copper Alloy	0.157 in	4 mm	UL94 V-0

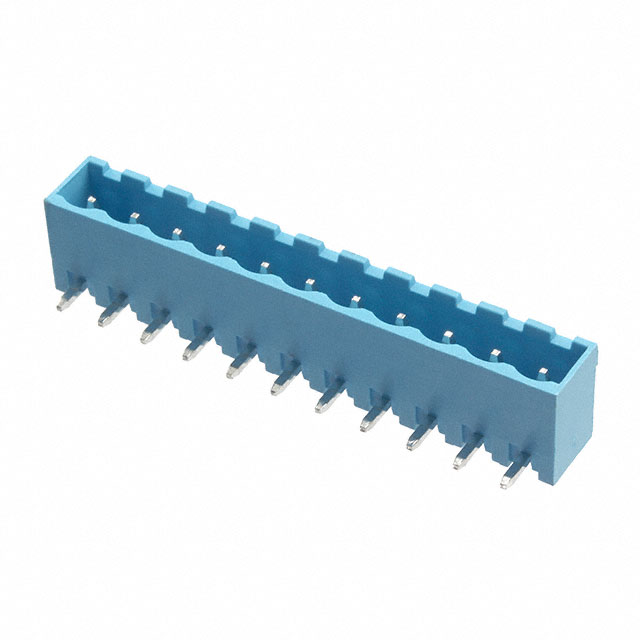

Same Sky (Formerly CUI Devices) TBP01R1-508-11BE	90° Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	0.2 in	11	Solder	320 V		-40 C	105 ░C	20 A	300 V	Tin	1	11	0.335 "	8.51 mm	Copper Alloy	0.157 in	4 mm	UL94 V-0
Same Sky (Formerly CUI Devices) TBP01R1-508-10BE	90° Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	0.2 in	10	Solder	320 V		-40 C	105 ░C	20 A	300 V	Tin	1	10	0.335 "	8.51 mm	Copper Alloy	0.157 in	4 mm	UL94 V-0

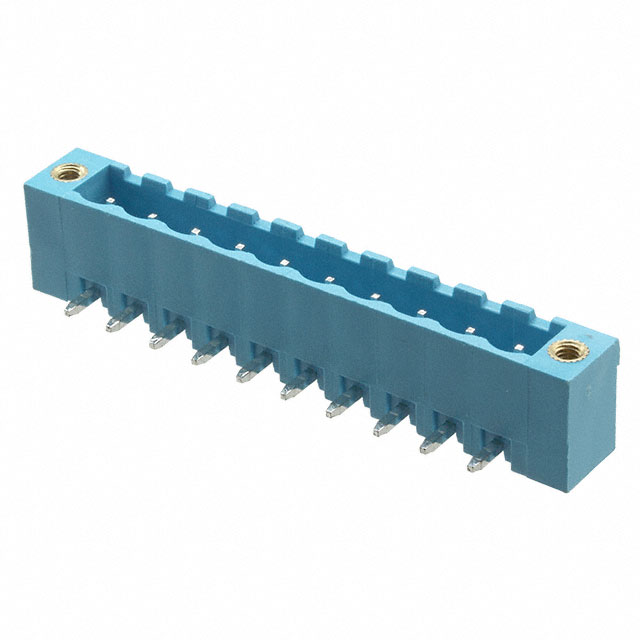

Same Sky (Formerly CUI Devices) TBP01R1W-508-10BE	90° Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	0.2 in	10	Solder	320 V		-40 C	105 ░C	20 A	300 V	Tin	1	10							Mating Flange
