9509 Series
Manufacturer: Belden Inc.
Beta
⌘K

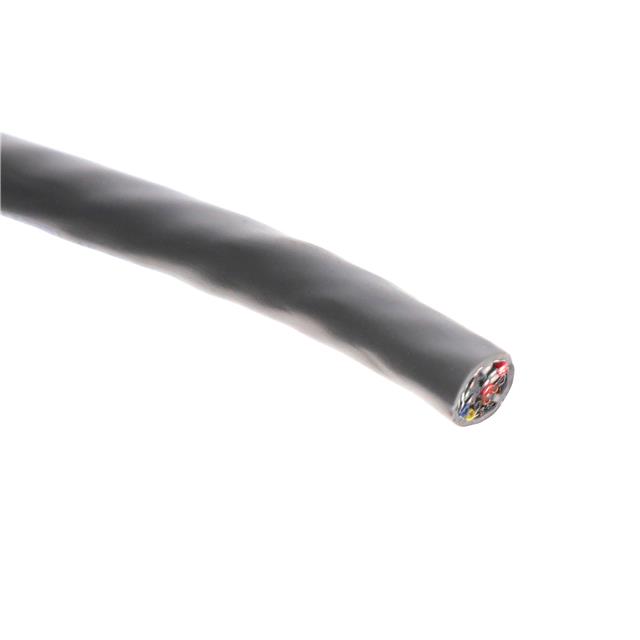

MULTI-PAIR 18COND 24AWG 100'
| Part | Shield Coverage | Shield Material | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Features | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Conductor Material | Jacket Color | Length [x] | Length [x] | Ratings | Usage | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 18 | 80 °C | -30 ░C | Multi-Pair | Drain Wire | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Foil | Poly-Vinyl Chloride (PVC) | 0.334 in | 8.48 mm | 24 AWG | Copper Tinned | Chrome | 100 ft | 30.5 m | UL Style 2464 | Computer | |
Belden Inc. | 100 % | Aluminum | 18 | 80 °C | -30 ░C | Multi-Pair | Drain Wire | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Foil | Poly-Vinyl Chloride (PVC) | 0.334 in | 8.48 mm | 24 AWG | Copper Tinned | Chrome | UL Style 2464 | Computer | 300 VDC |
