9970-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Diameter [diameter]	Tail Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth	Socket Depth	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Length - Overall	Length - Overall	Termination

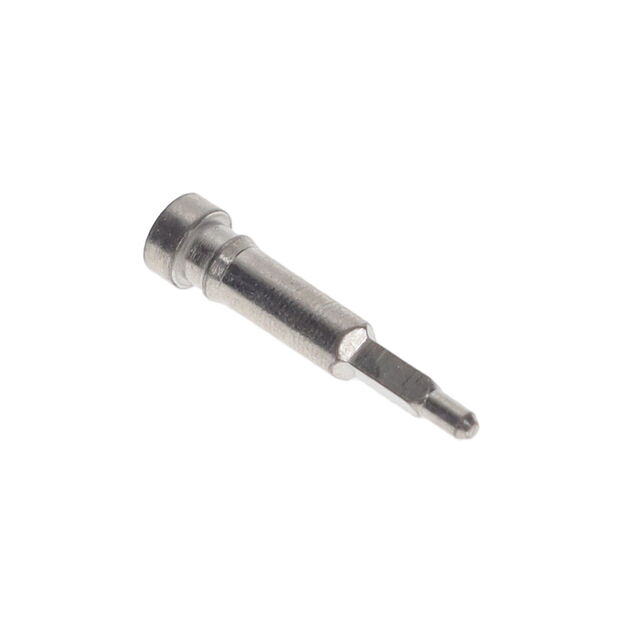

Mill-Max Manufacturing Corp. 9970-0-15-80-30-27-04-0	-55 C	125 °C	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	0.032 in	0.81 mm	Beryllium Copper	0.072 "	1.83 mm	4.45 mm	0.175 "	Standard Tail	30 Áin	0.76 Ám	Gold	8.38 mm	0.33 in	Press-Fit
Mill-Max Manufacturing Corp. 9970-0-15-80-30-14-04-0	-55 C	125 °C	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	0.032 in	0.81 mm	Beryllium Copper	0.072 "	1.83 mm	4.45 mm	0.175 "	Standard Tail	10 Áin	0.25 Ám	Gold	8.38 mm	0.33 in	Press-Fit
Mill-Max Manufacturing Corp. 9970-0-15-15-30-14-04-0	-55 C	125 °C	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	0.032 in	0.81 mm	Beryllium Copper	0.072 "	1.83 mm	4.45 mm	0.175 "	Standard Tail	10 Áin	0.25 Ám	Gold	8.38 mm	0.33 in	Press-Fit
