D5G0204 Series
Manufacturer: Electroswitch
Beta
⌘K

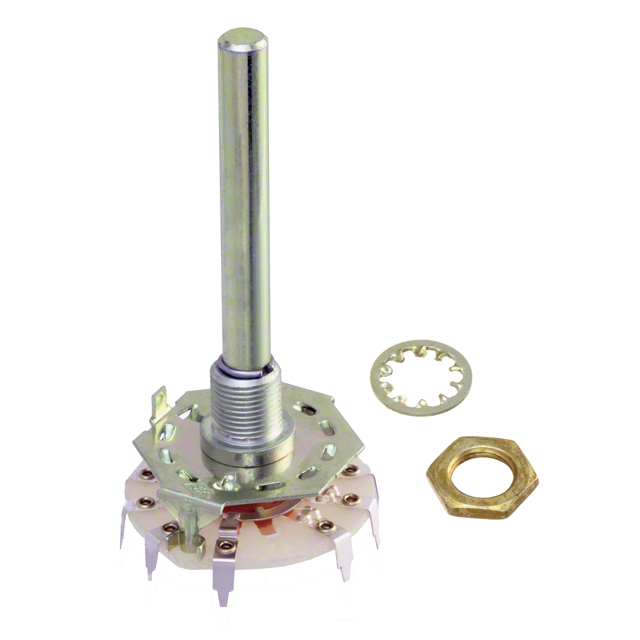

SWITCH ROTARY 4POS 500MA 115V
| Part | Panel Cutout Dimensions [diameter] | Number of Positions | Voltage Rating - DC | Actuator Length [x] | Number of Decks [custom] | Contact Timing | Number of Poles per Deck | Mounting Type | Contact Material | Termination Style | Actuator Type | Actuator Type [diameter] | Angle of Throw | Circuit per Deck | Contact Finish | Index Stops | Current Rating (Amps) | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 9.78 mm | 4 | 28 V | 47.63 mm | 1 | Non-Shorting (BBM) | 2 | Panel Mount | Brass | Solder Lug | Round | 0.25 in | 30 ° | DP4T | Silver | Fixed | 1.5 A 500 mA | 115 V |
