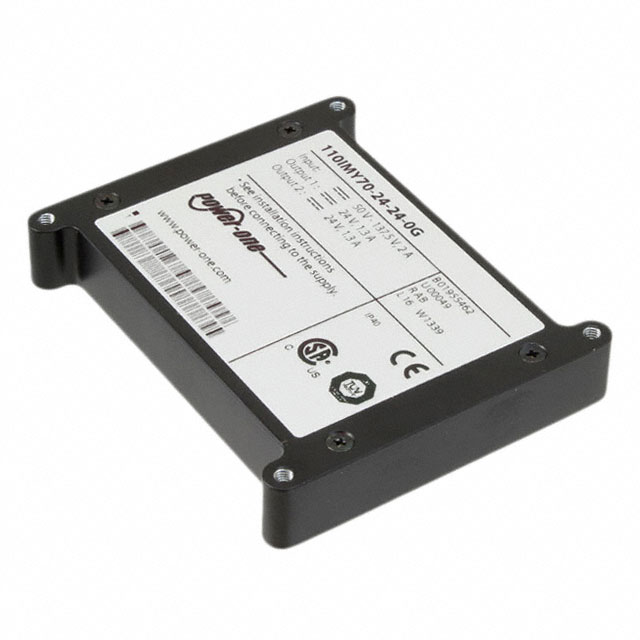

110IMY70 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
DC DC CONVERTER 15V 90W
| Part | Control Features | Number of Outputs | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Voltage - Output 1 | Voltage - Input (Min) [Min] | Package / Case | Applications | Power (Watts) | Features | Voltage - Input (Max) [Max] | Efficiency | Voltage - Isolation | Type | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | Active High Enable | 1 | 47.8 mm | 9.8 mm | 2.87 in | 0.38 in | 1.88 in | 72.8 mm | Through Hole | 15 V | 50 V | 19-DIP Module 17 Leads | ITE (Commercial) Railway | 90 W | OCP OTP OVP Remote On/Off SCP UVLO | 137.5 V | 93 % | 4.2 kV | Isolated Module Conformal Coated | 6 A | -40 C | 95 °C |
 Bel Fuse Inc. | 1 | 63.5 mm | 12.5 mm | 3 " | 0.49 " | 2.5 " | 76.2 mm | Through Hole | 12 V | 50 V | 19-DIP Module | ITE (Commercial) Railway | 90 W | OCP OTP SCP | 137.5 V | 93 % | 4.2 kV | Isolated Module Conformal Coated | 7.5 A | -40 C | 95 °C |
