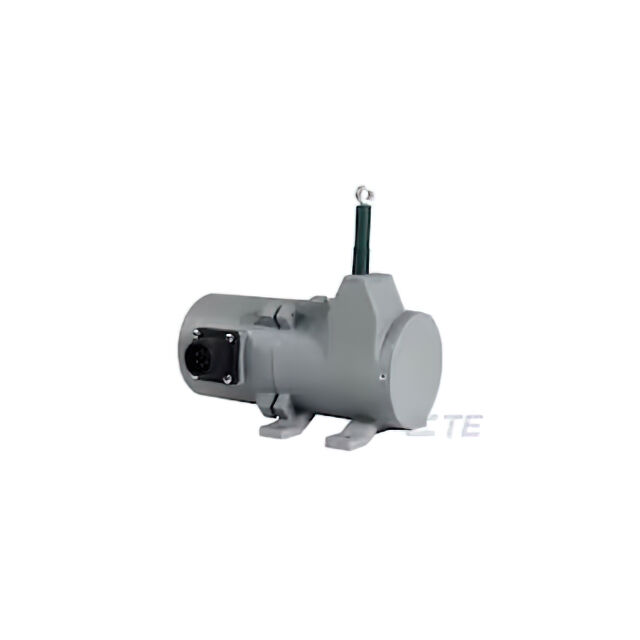

MEAS PT8420 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PT8420-0040-211-1133

Part	Linear Range [Min]	Linear Range [Min]	Linear Range [Max]	Linear Range [Max]	Technology	Output [Min]	Output [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	For Measuring	Termination Style	Package / Case	Output Signal	Actuator Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Output	Linearity	Linear Range [Min] [x]	Linear Range [Max] [x]
TE Connectivity AMP Connectors PT8420-0040-211-1133	0 mm	0 "	1.01 mm	0.04 in	Resistive	4 mA	20 mA	90 °C	-40 C	Chassis Mount	Linear Position	Connector	Module	Clockwise Increase	String Potentiometer	8 V	34 VDC
TE Connectivity AMP Connectors PT8420-0040-311-1150					Resistive	4 mA	20 mA	90 °C	-40 C	Chassis Mount	Linear Position	Solder Lug	Module	Clockwise Increase	String Potentiometer
TE Connectivity AMP Connectors PT8420-0060-111-1550					Resistive	4 mA	20 mA	90 °C	-40 C	Chassis Mount	Linear Position	Solder Lug	Module	Clockwise Increase	String Potentiometer
TE Connectivity AMP Connectors PT8420-0010-211-1251	0 mm	0 "	254 mm	10 in	Resistive	20 mA	4 mA	90 °C	-40 C	Chassis Mount	Linear Position	Cable	Module	Clockwise Increase	String Potentiometer	8 V	34 VDC
TE Connectivity AMP Connectors PT8420-0030-521-1160					Resistive	4 mA	20 mA	90 °C	-40 C	Chassis Mount	Linear Position	Solder Lug	Module	Clockwise Increase	String Potentiometer
TE Connectivity AMP Connectors PT8420-0040-311-1130	0 mm	0 "	1.01 mm	0.04 in	Resistive	4 mA	20 mA	90 °C	-40 C	Chassis Mount	Linear Position	Connector	Module	Clockwise Increase	String Potentiometer	8 V	34 VDC
TE Connectivity AMP Connectors PT8420-0010-931-1521					Resistive	4 mA	20 mA	90 °C	-40 C	Chassis Mount	Linear Position	Solder Lug	Module	Clockwise Increase	String Potentiometer
TE Connectivity AMP Connectors PT8420-0040-511-1111					Resistive			90 °C	-40 C	Chassis Mount	Linear Position	Connector	Box with Connector	Clockwise Increase	Linear Slide	8 V	34 VDC	Analog Current	0.15 %
TE Connectivity AMP Connectors PT8420-0040-211-1161	0 mm	0 "	1.01 mm	0.04 in	Resistive	4 mA	20 mA	90 °C	-40 C	Chassis Mount	Linear Position	Cable	Module	Clockwise Increase	String Potentiometer	8 V	34 VDC
TE Connectivity AMP Connectors PT8420-0050-311-1620					Resistive	20 mA	4 mA	90 °C	-40 C	Chassis Mount	Linear Position	Cable	Module	Clockwise Increase	String Potentiometer	14 V	32 VDC			0 mm	50 "
