2143 Series

Manufacturer: Oupiin

Catalog

PCB SOCKET, SINGLE ROW, 18 PIN,

Part	Contact Finish Thickness - Post	Contact Material	Contact Shape	Insulation Material	Contact Type	Contact Finish - Post	Connector Type	Number of Positions	Contact Finish Thickness - Mating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Fastening Type	Termination	Material Flammability Rating	Mounting Type	Contact Finish - Mating	Features	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Insulation Height [z]	Insulation Height [z]	Number of Positions [custom]	Current Rating (Amps)	Insulation Color
Oupiin 2143-1X18G00DAT-P	Flash	Copper Alloy	Square	Plastic	Female Socket	Gold	Socket	18	Flash	1	-65 ░C	125 °C	All	4.4 mm	0.173 in	0.079 "	2 mm	Push-Pull	Solder	UL94 V-0	Surface Mount	Gold	Pick and Place

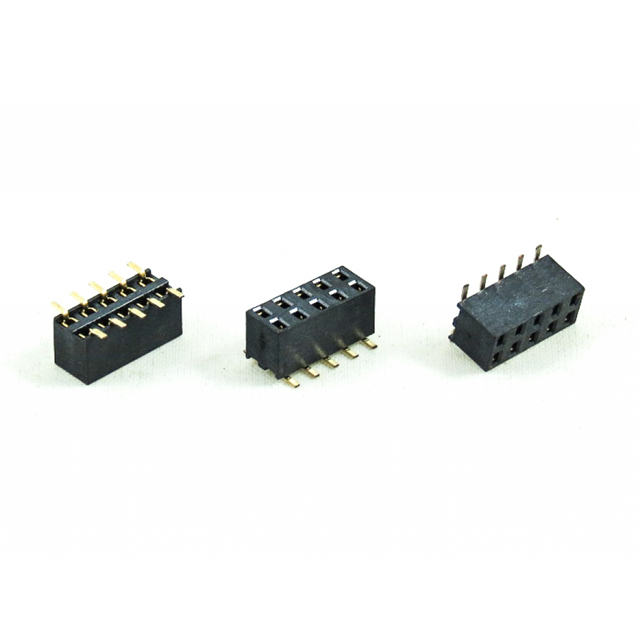

Oupiin 2143-2X05G00DNU-P	Flash	Copper Alloy	Square	Plastic	Female Socket	Gold	Socket	10	Flash		-65 ░C	125 °C	All	4.4 mm	0.173 in	0.079 "	2 mm	Push-Pull	Solder	UL94 V-0	Surface Mount	Gold	Board Guide Pick and Place	2	2 mm	0.079 in	0.185 in	4.7 mm
Oupiin 2143-1X04G00DAT-P	Flash	Copper Alloy	Square	Plastic	Female Socket	Gold	Socket	4	Flash	1	-65 ░C	125 °C	All	4.4 mm	0.173 in	0.079 "	2 mm	Push-Pull	Solder	UL94 V-0	Surface Mount	Gold	Pick and Place

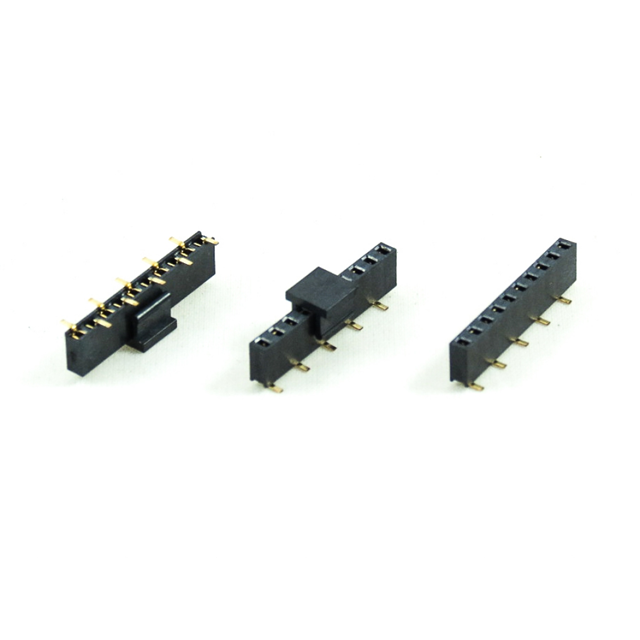

Oupiin 2143-1X11G00DAT-P	Flash	Copper Alloy	Square	Plastic	Female Socket	Gold	Socket	11	Flash	1	-65 ░C	125 °C	All	4.4 mm	0.173 in	0.079 "	2 mm	Push-Pull	Solder	UL94 V-0	Surface Mount	Gold	Pick and Place
Oupiin 2143-2X17G00DNU	Flash	Copper Alloy	Square	Plastic	Female Socket	Gold	Socket		Flash		-65 ░C	125 °C	All	4.4 mm	0.173 in	0.079 "	2 mm	Push-Pull	Solder	UL94 V-0	Surface Mount	Gold	Board Guide	2	2 mm	0.079 in	0.185 in	4.7 mm	34
Oupiin 2143-A2X17G00DNU	Flash	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	Female Socket	Gold	Socket		Flash		-65 ░C	125 °C	All			0.079 "	2 mm	Push-Pull	Solder	UL94 V-0	Surface Mount	Gold	Board Guide	2	2 mm	0.079 in	0.157 in	4 mm	34	2 A	Black
Oupiin 2143-2X12G00DPU	Flash	Copper Alloy	Square	Plastic	Female Socket	Gold	Socket	24	Flash		-65 ░C	125 °C	All	4.4 mm	0.173 in	0.079 "	2 mm	Push-Pull	Solder	UL94 V-0	Surface Mount	Gold	Board Guide	2	2 mm	0.079 in	0.185 in	4.7 mm
