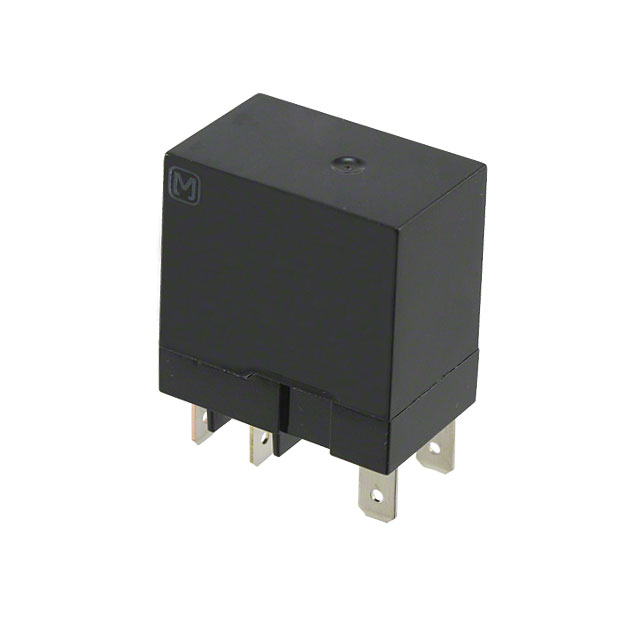

JC2AF Series

Manufacturer: Panasonic Electronic Components

Catalog

RELAY GEN PURPOSE DPST 10A 12V

Part	Coil Resistance	Release Time	Contact Material	Must Operate Voltage	Coil Current	Relay Type	Approval Agency	Contact Rating (Current)	Must Release Voltage	Termination Style	Termination Style	Load - Max Switching [Max]	Mounting Type	Coil Voltage	Coil Type	Switching Voltage [Max]	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form
Panasonic Electronic Components JC2AF-S-DC12V-F	144 Ohms	10 ms	Silver Tin Oxide (AgSnO)	9.6 VDC	83.3 mA	General Purpose	CSA TUV UR VDE	10 A	1.2 VDC	0.187 in 4.7 mm	Plug In Quick Connect	2500 VA	Socketable	12 VDC	Non Latching	250 VAC	30 ms	-50 °C	60 °C	DPST-NO (2 Form A)
Panasonic Electronic Components JC2AF-DC12V	144 Ohms	2 ms	Silver Alloy	9.6 VDC	83.3 mA	General Purpose	CSA TUV UR VDE	10 A	1.2 VDC		PC Pin	2500 VA	Through Hole	12 VDC	Non Latching	250 VAC	15 ms	-50 °C	60 °C	DPST-NO (2 Form A)
Panasonic Electronic Components JC2AF-TM-DC6V-F	36 Ohms	10 ms	Silver Tin Oxide (AgSnO)	4.8 VDC	167 mA	General Purpose	CSA TUV UR VDE	10 A	0.6 VDC		Quick Connect	2500 VA	Chassis Mount		Non Latching	250 VAC	30 ms	-50 °C	60 °C	DPST-NO (2 Form A)
Panasonic Electronic Components JC2AF-TM-DC12V	144 Ohms	2 ms	Silver Alloy	9.6 VDC	83.3 mA	General Purpose	CSA TUV UR VDE	10 A	1.2 VDC		Quick Connect	2500 VA	Chassis Mount	12 VDC	Non Latching	250 VAC	15 ms	-50 °C	60 °C	DPST-NO (2 Form A)
Panasonic Electronic Components JC2AF-S-DC12V	144 Ohms	2 ms	Silver Alloy	9.6 VDC	83.3 mA	General Purpose	CSA TUV UR VDE	10 A	1.2 VDC	0.187 in 4.7 mm	Plug In Quick Connect	2500 VA	Socketable	12 VDC	Non Latching	250 VAC	15 ms	-50 °C	60 °C	DPST-NO (2 Form A)
Panasonic Electronic Components JC2AF-S-DC6V-F	36 Ohms	10 ms	Silver Tin Oxide (AgSnO)	4.8 VDC	167 mA	General Purpose	CSA TUV UR VDE	10 A	0.6 VDC	0.187 in 4.7 mm	Plug In Quick Connect	2500 VA	Socketable		Non Latching	250 VAC	30 ms	-50 °C	60 °C	DPST-NO (2 Form A)
Panasonic Electronic Components JC2AF-DC48V-F	2.3 kOhms	10 ms	Silver Tin Oxide (AgSnO)	38.4 VDC	20.8 mA	General Purpose	CSA TUV UR VDE	10 A	4.8 VDC		PC Pin	2500 VA	Through Hole	48 VDC	Non Latching	250 VAC	30 ms	-50 °C	60 °C	DPST-NO (2 Form A)
Panasonic Electronic Components JC2AF-S-DC24V-F	576 Ohms	10 ms	Silver Tin Oxide (AgSnO)	19.2 VDC	41.6 mA	General Purpose	CSA TUV UR VDE	10 A	2.4 VDC	0.187 in 4.7 mm	Plug In Quick Connect	2500 VA	Socketable	24 VDC	Non Latching	250 VAC	30 ms	-50 °C	60 °C	DPST-NO (2 Form A)
Panasonic Electronic Components JC2AF-DC24V-F	576 Ohms	10 ms	Silver Tin Oxide (AgSnO)	19.2 VDC	41.6 mA	General Purpose	CSA TUV UR VDE	10 A	2.4 VDC		PC Pin	2500 VA	Through Hole	24 VDC	Non Latching	250 VAC	30 ms	-50 °C	60 °C	DPST-NO (2 Form A)
Panasonic Electronic Components JC2AF-DC48V	2.3 kOhms	2 ms	Silver Alloy	38.4 VDC	20.8 mA	General Purpose	CSA TUV UR VDE	10 A	4.8 VDC		PC Pin	2500 VA	Through Hole	48 VDC	Non Latching	250 VAC	15 ms	-50 °C	60 °C	DPST-NO (2 Form A)
