CPI-13 Series

Catalog

BUZZER PIEZO 12V 13.90MM TH

Part	Input Type	Sound Pressure Level (SPL)	Frequency	Ratings	Driver Circuitry	Size / Dimension [diameter]	Size / Dimension [diameter]	Technology	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Operating Mode	Voltage Range [Min]	Voltage Range [Max]	Current - Supply	Port Location
Same Sky (Formerly CUI Devices) CPI-137-12T	DC	92 dB	3.8 kHz	Washable	Indicator Internally Driven	13.9 mm	0.547 in	Piezo	PC Pins	8 mm	0.315 in	Through Hole	12 VDC	85 °C	-40 C	Single Tone	5 VDC	15 V	18 mA	Top
Same Sky (Formerly CUI Devices) CPI-137-12T	DC	92 dB	3.8 kHz	Washable	Indicator Internally Driven	13.9 mm	0.547 in	Piezo	PC Pins	8 mm	0.315 in	Through Hole	12 VDC	85 °C	-40 C	Single Tone	5 VDC	15 V	18 mA	Top

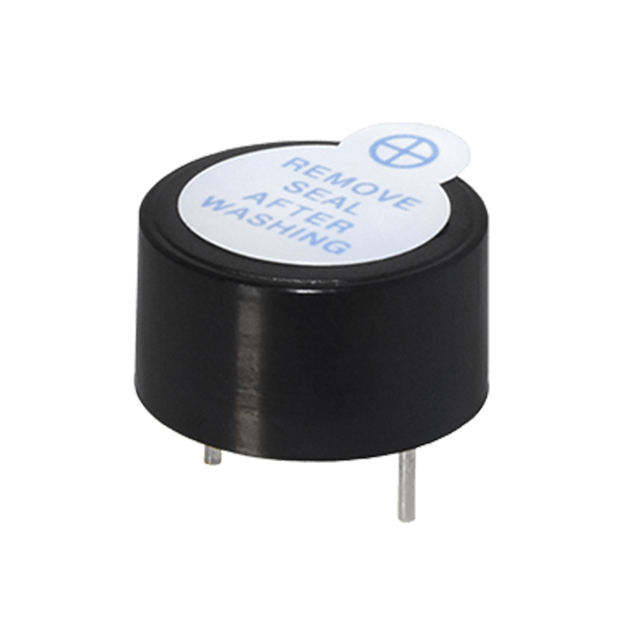

Same Sky (Formerly CUI Devices) CPI-1375IC-80T	DC	88 dB	4 kHz	Washable	Indicator Internally Driven	13.8 mm	0.543 "	Piezo	PC Pins	8 mm	0.315 in	Through Hole	12 VDC	70 °C	-30 ░C	Single Tone	3.5 VDC	16 V	7 mA	Top
Same Sky (Formerly CUI Devices) CPI-1375IC-80T	DC	88 dB	4 kHz	Washable	Indicator Internally Driven	13.8 mm	0.543 "	Piezo	PC Pins	8 mm	0.315 in	Through Hole	12 VDC	70 °C	-30 ░C	Single Tone	3.5 VDC	16 V	7 mA	Top
