BWQC Series

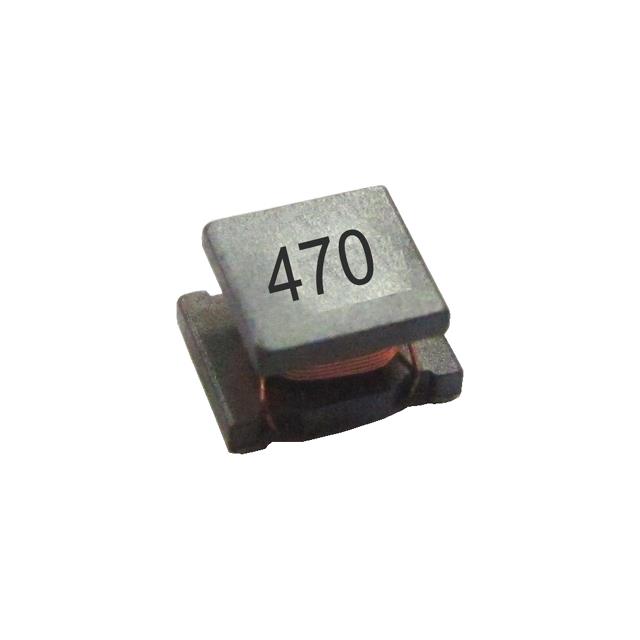

RF Inductors - SMD Chilisin RF inductor Wire Wound-High Current

Manufacturer: Pulse Electronics

Catalog

RF Inductors - SMD Chilisin RF inductor Wire Wound-High Current

Catalog

RF Inductors - SMD Chilisin RF inductor Wire Wound-High Current

Part	Package / Case	Mounting Type	Material - Core	Tolerance	Inductance	Current Rating (Amps)	Inductance Frequency - Test	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Frequency - Self Resonant	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Pulse Electronics BWQC00453226681J00	Nonstandard	Surface Mount	Ferrite	5 %	680 µH	70 mA	1 kHz	Drum Core Wirewound	0.177 in	0.142 "	4.5 mm	3.6 mm	2.2 MHz	Unshielded	125 °C	-40 C	14.7 Ohm
Pulse Electronics BWQC003225164R7TH1	1210	Surface Mount	Ferrite	30 %	4.7 ÁH	1 A	1 MHz	Drum Core Wirewound	0.126 "	0.098 in	3.2 mm	2.5 mm	40 MHz	Unshielded	125 °C	-25 °C	180 mOhm	0.067 in	1.7 mm	3225 Metric	1210
Pulse Electronics BWQC00322520151K00	1210	Surface Mount	Ferrite	10 %	150 µH	80 mA	1 MHz	Drum Core Wirewound	0.126 "	0.098 in	3.2 mm	2.5 mm	7 MHz	Unshielded	125 °C	-25 °C	6 Ohm			3225 Metric	1210	0.087 in	2.2 mm
Pulse Electronics BWQC004532261R5M00	Nonstandard	Surface Mount	Ferrite	20 %	1.5 µH	1 A	1 MHz	Drum Core Wirewound	0.177 in	0.142 "	4.5 mm	3.6 mm	85 MHz	Unshielded	125 °C	-40 C	90 mOhm
Pulse Electronics BWQC00453226100M00	Nonstandard	Surface Mount	Ferrite	20 %	10 µH	650 mA	1 MHz	Drum Core Wirewound	0.177 in	0.142 "	4.5 mm	3.6 mm	23 MHz	Unshielded	125 °C	-40 C	240 mOhm
Pulse Electronics BWQC00322516R47TH1	1210	Surface Mount	Ferrite	30 %	470 nH	3.4 A	1 MHz	Drum Core Wirewound	0.126 "	0.098 in	3.2 mm	2.5 mm	100 MHz	Unshielded	125 °C	-25 °C	30 mOhm	0.067 in	1.7 mm	3225 Metric	1210
Pulse Electronics BWQC003225161R5TH1	1210	Surface Mount	Ferrite	30 %	1.5 µH	1.75 A	1 MHz	Drum Core Wirewound	0.126 "	0.098 in	3.2 mm	2.5 mm		Unshielded	125 °C	-25 °C	57 mOhm	0.067 in	1.7 mm	3225 Metric	1210
Pulse Electronics BWQC003225162R2MH1	1210	Surface Mount	Ferrite	20 %	2.2 µH	1.55 A	1 MHz	Drum Core Wirewound	0.126 "	0.098 in	3.2 mm	2.5 mm		Unshielded	125 °C	-25 °C	76 mOhm	0.067 in	1.7 mm	3225 Metric	1210
Pulse Electronics BWQC00322516220MH1	1210	Surface Mount	Ferrite	20 %	22 µH	0.5 A	1 MHz	Drum Core Wirewound	0.126 "	0.098 in	3.2 mm	2.5 mm	20 MHz	Unshielded	125 °C	-25 °C	810 mOhm	0.067 in	1.7 mm	3225 Metric	1210
Pulse Electronics BWQC00322520330K00	1210	Surface Mount	Ferrite	10 %	33 µH	0.2 A	1 MHz	Drum Core Wirewound	0.126 "	0.098 in	3.2 mm	2.5 mm	15 MHz	Unshielded	125 °C	-25 °C	1.1 Ohm			3225 Metric	1210	0.087 in	2.2 mm
