FF150R12K Series

Manufacturer: INFINEON

Catalog

THE FF150R12KE3G IS A DUAL IGBT3 - E3 MODULE IN A 62 MM HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 150 A.

Part	Input	Configuration	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector Cutoff (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Input Capacitance (Cies) @ Vce	Voltage - Collector Emitter Breakdown (Max) [Max]	IGBT Type
INFINEON FF150R12KE3GHOSA1	Standard	Single Chopper	Chassis Mount	Module	125 °C	-40 C	5 mA	2.15 V	780 W	225 A	Module	11 nF	1200 V	Trench Field Stop

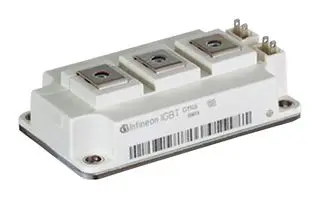

INFINEON FF150R12KE3GB2HOSA1	Standard	Half Bridge Inverter	Chassis Mount	Module	125 °C	-40 C	5 mA	2.15 V	780 W	225 A	Module	11 nF	1200 V	Trench Field Stop
INFINEON FF150R12KT3GHOSA1	Standard	Single Chopper	Chassis Mount	Module	125 °C	-40 C	5 mA	2.15 V	780 W	225 A	Module	11 nF	1200 V	Trench Field Stop
