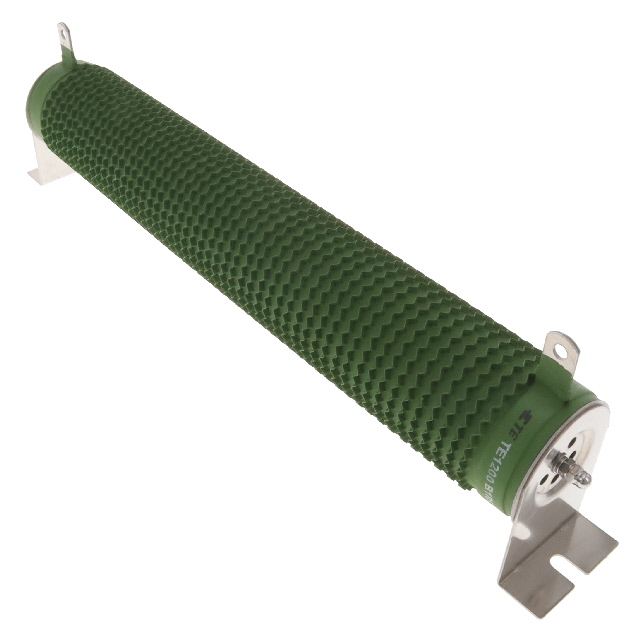

TE1200 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

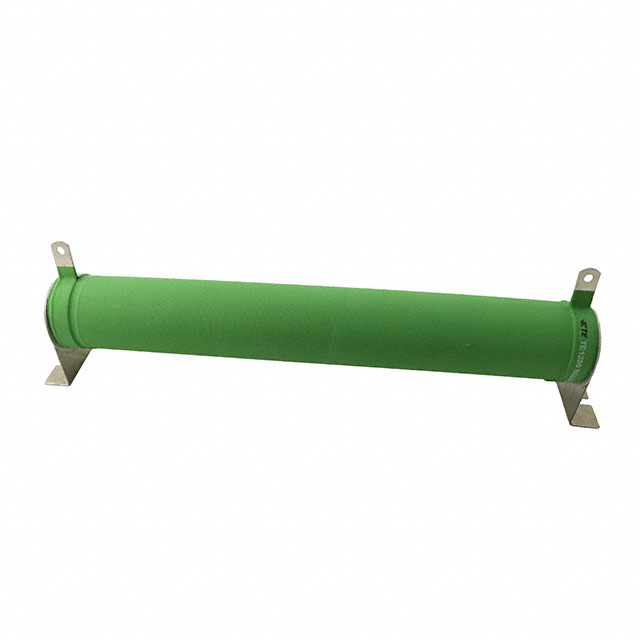

RES CHAS MNT 680 OHM 5% 1200W
| Part | Tolerance | Package / Case | Power (Watts) | Lead Style | Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Features | Composition | Temperature Coefficient | Coating, Housing Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 5 % | Radial Tubular | 1200 W | Solder Lugs | 680 Ohms | 155 C | -55 C | 16.339 in | 2.362 in | 60 mm | 415 mm | Flame Proof Safety | Wirewound | 440 ppm/°C | Silicone Coated | Brackets |
 TE Connectivity AMP Connectors | 5 % | Radial Tubular | 1200 W | Solder Lugs | 120 Ohms | 155 C | -55 C | 16.339 in | 2.362 in | 60 mm | 415 mm | Flame Proof Safety | Wirewound | 440 ppm/°C | Silicone Coated | Brackets |
TE Connectivity AMP Connectors | 5 % | Radial Tubular | 1200 W | Solder Lugs | 27 Ohms | 155 C | -55 C | 16.339 in | 2.362 in | 60 mm | 415 mm | Flame Proof Safety | Wirewound | 440 ppm/°C | Silicone Coated | Brackets |
TE Connectivity AMP Connectors | 5 % | Radial Tubular | 1200 W | Solder Lugs | 6.8 Ohms | 155 C | -55 C | 16.339 in | 2.362 in | 60 mm | 415 mm | Flame Proof Safety | Wirewound | 440 ppm/°C | Silicone Coated | Brackets |
TE Connectivity AMP Connectors | 5 % | Radial Tubular | 1200 W | Solder Lugs | 12 Ohms | 155 C | -55 C | 16.339 in | 2.362 in | 60 mm | 415 mm | Flame Proof Safety | Wirewound | 440 ppm/°C | Silicone Coated | Brackets |
TE Connectivity AMP Connectors | 5 % | Radial Tubular | 1200 W | Solder Lugs | 3.9 Ohms | 155 C | -55 C | 16.339 in | 2.362 in | 60 mm | 415 mm | Flame Proof Safety | Wirewound | 440 ppm/°C | Silicone Coated | Brackets |
TE Connectivity AMP Connectors | 5 % | Radial Tubular | 1200 W | Solder Lugs | 1000 Ohms | 155 C | -55 C | 16.339 in | 2.362 in | 60 mm | 415 mm | Flame Proof Safety | Wirewound | 440 ppm/°C | Silicone Coated | Brackets |
TE Connectivity AMP Connectors | 5 % | Radial Tubular | 1200 W | Solder Lugs | 820 Ohms | 155 C | -55 C | 16.339 in | 2.362 in | 60 mm | 415 mm | Flame Proof Safety | Wirewound | 440 ppm/°C | Silicone Coated | Brackets |
TE Connectivity AMP Connectors | 5 % | Radial Tubular | 1200 W | Solder Lugs | 150 Ohms | 155 C | -55 C | 16.339 in | 2.362 in | 60 mm | 415 mm | Flame Proof Safety | Wirewound | 440 ppm/°C | Silicone Coated | Brackets |
TE Connectivity AMP Connectors | 5 % | Radial Tubular | 1200 W | Solder Lugs | 1500 Ohms | 155 C | -55 C | 16.339 in | 2.362 in | 60 mm | 415 mm | Flame Proof Safety | Wirewound | 440 ppm/°C | Silicone Coated | Brackets |
