MX34R05H Series
Manufacturer: JAE Electronics
Beta
⌘K

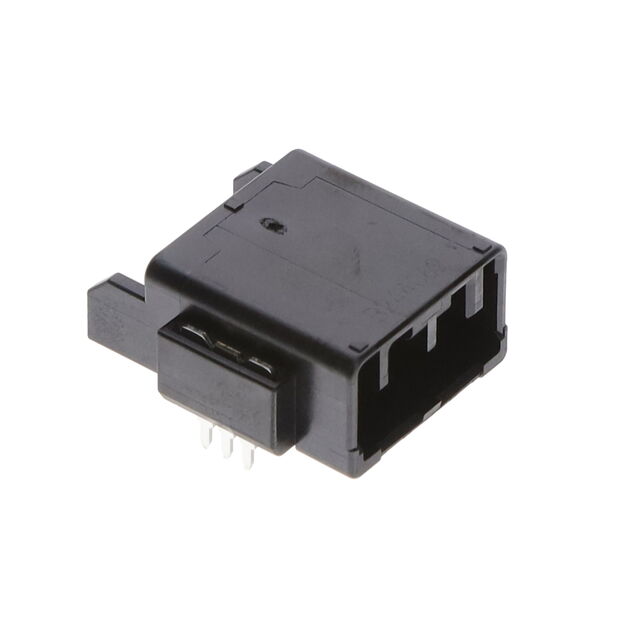

CONN HEADER SMD R/A 5POS 2.2MM
| Part | Applications | Insulation Height | Insulation Height | Contact Material | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Features | Termination | Contact Shape | Contact Type | Number of Positions | Shrouding | Contact Length - Mating | Contact Length - Mating | Current Rating (Amps) | Style | Insulation Material | Number of Positions Loaded | Contact Finish - Post | Fastening Type | Insulation Color | Connector Type | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | 10.7 mm | 0.421 " | Copper Alloy | 1 | 85 °C | -40 C | Right Angle Surface Mount | Solder Retention | Solder | Square | Male Pin | 5 | Shrouded - 4 Wall | 0.303 in | 7.7 mm | 3 A | Board to Cable/Wire | Polyphenylene Sulfide (PPS) Glass Filled | All | Tin | Locking Ramp | Black | Header | 0.087 in | 2.2 mm |
