PM4343 Series

Power Inductors - SMD 0.3uH 48A 6.5mm AEC-Q200 +/-20%

Manufacturer: Pulse Electronics

Catalog

Power Inductors - SMD 0.3uH 48A 6.5mm AEC-Q200 +/-20%

Catalog

Power Inductors - SMD 0.3uH 48A 6.5mm AEC-Q200 +/-20%

Part	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) [Max]	Current - Saturation (Isat)	Inductance	Type	Tolerance	Mounting Type	DC Resistance (DCR)
Pulse Electronics PM4343.562NLT	AEC-Q200	6.5 mm	0.256 in	100 kHz	Nonstandard	0.504 in	0.551 in	12.8 mm	14 mm	12.5 Amps	Shielded	125 °C	-40 C	10 mOhm	23 A	5.6 µH	Molded	20 %	Surface Mount
Pulse Electronics PM4343.472NLT	AEC-Q200	6.5 mm	0.256 in	100 kHz	Nonstandard	0.504 in	0.551 in	12.8 mm	14 mm	13.5 A	Shielded	125 °C	-40 C	8.4 mOhm	28 A	4.7 ÁH	Molded	20 %	Surface Mount
Pulse Electronics PM4343.332NLT	AEC-Q200	6.5 mm	0.256 in	100 kHz	Nonstandard	0.504 in	0.551 in	12.8 mm	14 mm	18 A	Shielded	125 °C	-40 C		30 A	3.3 µH	Molded	20 %	Surface Mount	6.8 mOhm
Pulse Electronics PM4343.272NLT	AEC-Q200	6.5 mm	0.256 in	100 kHz	Nonstandard	0.504 in	0.551 in	12.8 mm	14 mm	20 A	Shielded	125 °C	-40 C	5.5 mOhm	32 A	2.7 µH	Molded	20 %	Surface Mount
Pulse Electronics PM4343.221NLT	AEC-Q200	6.5 mm	0.256 in	100 kHz	Nonstandard	0.504 in	0.551 in	12.8 mm	14 mm	53 A	Shielded	125 °C	-40 C	0.6 mOhm	112 A	220 nH	Molded	20 %	Surface Mount
Pulse Electronics PM4343.471NLT	AEC-Q200	6.5 mm	0.256 in	100 kHz	Nonstandard	0.504 in	0.551 in	12.8 mm	14 mm	41 A	Shielded	125 °C	-40 C		63 A	470 nH	Molded	20 %	Surface Mount	1.2 mOhm

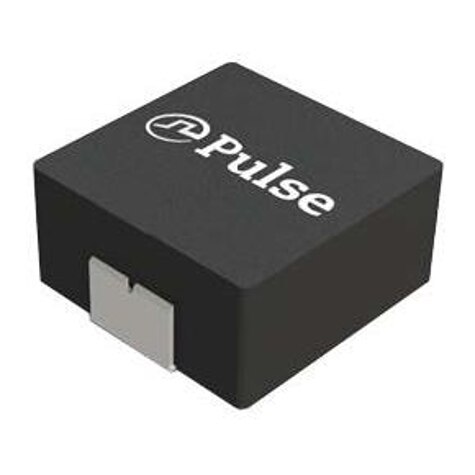

Pulse Electronics PM4343.301NLT	AEC-Q200	6.5 mm	0.256 in	100 kHz	Nonstandard	0.504 in	0.551 in	12.8 mm	14 mm	48 A	Shielded	125 °C	-40 C		72 A	300 nH	Molded	20 %	Surface Mount	0.72 mOhm
Pulse Electronics PM4343.103NLT	AEC-Q200	6.5 mm	0.256 in	100 kHz	Nonstandard	0.504 in	0.551 in	12.8 mm	14 mm	10 A	Shielded	125 °C	-40 C	16.5 mOhm	15.5 A	10 µH	Molded	20 %	Surface Mount
Pulse Electronics PM4343.151NLT	AEC-Q200	6.5 mm	0.256 in	100 kHz	Nonstandard	0.504 in	0.551 in	12.8 mm	14 mm	55 A	Shielded	125 °C	-40 C	0.6 mOhm	118 A	150 nH	Molded	30 %	Surface Mount
