NTMFSS1D3N06CL Series

MOSFET, Power, Single, N-Channel, Source-Down, TDFN9, 60V, 1.3mΩ, 243A

Catalog

MOSFET, Power, Single, N-Channel, Source-Down, TDFN9, 60V, 1.3mΩ, 243A

Part	Mounting Type	Vgs(th) (Max) @ Id	Package / Case	Power Dissipation (Max)	Technology	Rds On (Max) @ Id, Vgs	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds	Drain to Source Voltage (Vdss)	Vgs (Max)	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On)	Supplier Device Package	FET Type

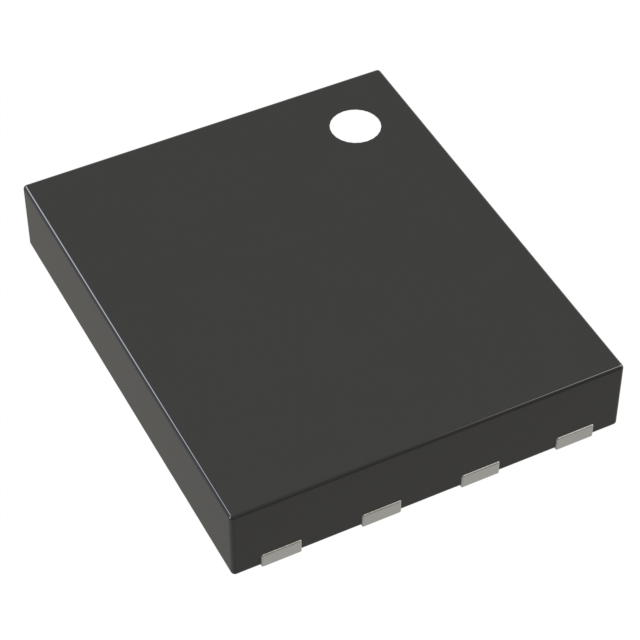

ON Semiconductor NTMFSS1D3N06CL	Surface Mount	2 V	8-PowerTDFN	2.5 W 153 W	MOSFET (Metal Oxide)	1.3 mOhm	-55 °C	150 °C	117 nC	8190 pF	60 V	20 V	31 A 243 A	4.5 V 10 V	9-TDFN (5x6)	N-Channel

MOSFET, Power, Single, N-Channel, Source-Down, TDFN9, 60V, 1.3mΩ, 243A

• Low RDS(on) to Minimize Conduction Losses

• Low QG and Capacitance to Minimize Driver Losses

• Small Footprint (5x6 mm) for Compact Design

• These Devices are Pb−Free, Halogen−Free / BFR Free and are RoHS Compliant

MOSFET, Power, Single, N-Channel, Source-Down, TDFN9, 60V, 1.3mΩ, 243A
