3006-0 Series

Catalog

CONN PC PIN CIRC 0.016DIA GOLD

Part	Length - Above Flange [x]	Length - Above Flange [x]	Length - Overall [x]	Length - Overall [x]	Terminal Type	Mounting Type	Termination	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Contact Material	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]	Terminal Style	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Below Flange [x]	Length - Below Flange [x]	Insulation
Mill-Max Manufacturing Corp. 3006-0-00-34-00-00-03-0	0.118 in	3 mm	8.1 mm	0.319 in	PC Pin	Through Hole	Press-Fit	Gold	50 µin	1.27 µm	0.016 in	0.41 mm	Brass Alloy	0.016 in	0.41 mm	Double End	0.034 in	0.86 mm	0.118 "	3 mm	Non-Insulated
Mill-Max Manufacturing Corp. 3006-0-00-21-00-00-03-0	0.118 in	3 mm	8.1 mm	0.319 in	PC Pin	Through Hole	Press-Fit	Gold	20 µin	0.51 µm	0.016 in	0.41 mm	Brass Alloy	0.016 in	0.41 mm	Double End	0.034 in	0.86 mm	0.118 "	3 mm	Non-Insulated
Mill-Max Manufacturing Corp. 3006-0-00-01-00-00-03-0	0.118 in	3 mm	8.1 mm	0.319 in	PC Pin	Through Hole	Press-Fit	Tin-Lead	200 Áin	5.08 Ám	0.016 in	0.41 mm	Brass Alloy	0.016 in	0.41 mm	Double End	0.034 in	0.86 mm	0.118 "	3 mm	Non-Insulated

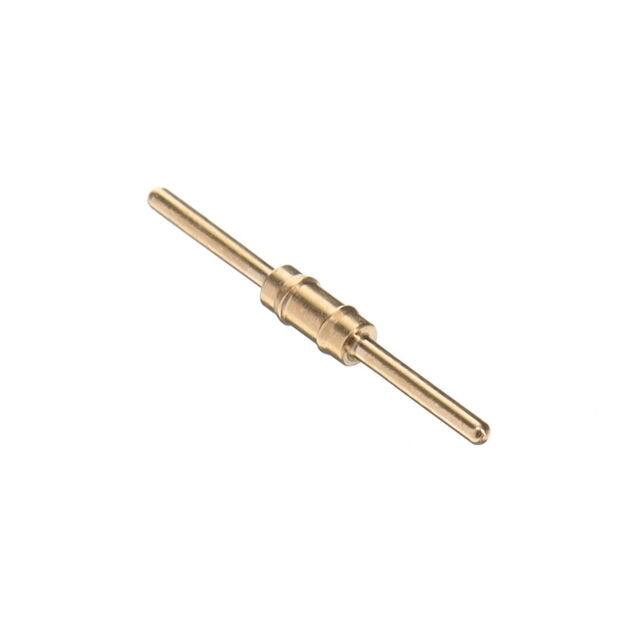

Mill-Max Manufacturing Corp. 3006-0-00-15-00-00-03-0	0.118 in	3 mm	8.1 mm	0.319 in	PC Pin	Through Hole	Press-Fit	Gold	10 Áin	0.25 Ám	0.016 in	0.41 mm	Brass Alloy	0.016 in	0.41 mm	Double End	0.034 in	0.86 mm	0.118 "	3 mm	Non-Insulated
