RP40-GW Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 40W DC/DC 1.6KV REG 4:1 18-75VIN 12VOUT

Part	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Features	Type	Applications	Control Features	Power (Watts)	Voltage - Output 1	Package / Case	Efficiency	Current - Output (Max) [Min]	Voltage - Output 2
Recom Power RP40-4812SGW/N-HC	3.33 A	75 V	Through Hole	18 V	1.6 kV	50.8 mm	2 in	0.4 "	2 in	10.2 mm	50.8 mm	55 °C	-40 C	1	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	ITE (Commercial)	Active Low Enable	40 W	12 V	8-DIP Module	87 %

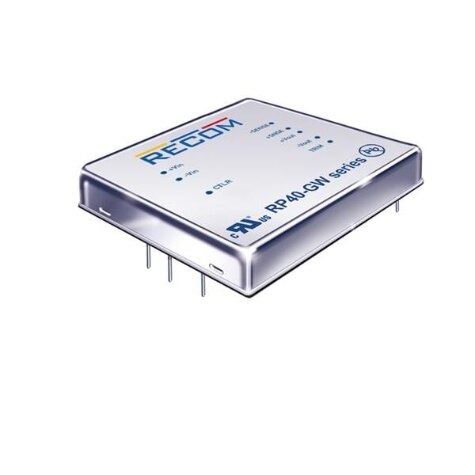

Recom Power RP40-2415SGW/N-HC	2.67 A	36 V	Through Hole	9 V	1.6 kV	50.8 mm	2 in	0.4 "	2 in	10.2 mm	50.8 mm	55 °C	-40 C	1	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	ITE (Commercial)	Active Low Enable	40 W	15 V	8-DIP Module	87 %
Recom Power RP40-483.3SGW-HC	10 A	75 V	Through Hole	18 V	1.6 kV	50.8 mm	2 in	0.4 "	2 in	10.2 mm	50.8 mm	55 °C	-40 C	1	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	ITE (Commercial)	Active High Enable	40 W	3.3 V	8-DIP Module	86 %
Recom Power RP40-2412DGW/N	1.67 A	36 V	Through Hole	9 V	1.6 kV	50.8 mm	2 in	0.4 "	2 in	10.2 mm	50.8 mm	55 °C	-40 C	2	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	ITE (Commercial)	Active Low Enable	40 W	12 V	8-DIP Module	86 %	1.67 A	-12 V
Recom Power RP40-2412DGW/N-HC	1.67 A	36 V	Through Hole	9 V	1.6 kV	50.8 mm	2 in	0.4 "	2 in	10.2 mm	50.8 mm	55 °C	-40 C	2	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	ITE (Commercial)	Active Low Enable	40 W	12 V	8-DIP Module	86 %	1.67 A	-12 V
Recom Power RP40-4812SGW	3.33 A	75 V	Through Hole	18 V	1.6 kV	50.8 mm	2 in	0.4 "	2 in	10.2 mm	50.8 mm	95 °C	-40 C	1	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	ITE (Commercial)	Active High Enable	40 W	12 V	8-DIP Module	87 %
Recom Power RP40-2415DGW-HC	1.33 A	36 V	Through Hole	9 V	1.6 kV	50.8 mm	2 in	0.4 "	2 in	10.2 mm	50.8 mm	55 °C	-40 C	2	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	ITE (Commercial)	Active High Enable	40 W	15 V	8-DIP Module	86 %		-15 V
Recom Power RP40-4805SGW/N	8 A	75 V	Through Hole	18 V	1.6 kV	50.8 mm	2 in	0.4 "	2 in	10.2 mm	50.8 mm	55 °C	-40 C	1	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	ITE (Commercial)	Active Low Enable	40 W	5 V	8-DIP Module	88 %
Recom Power RP40-4815SGW/N	2.67 A	75 V	Through Hole	18 V	1.6 kV	50.8 mm	2 in	0.4 "	2 in	10.2 mm	50.8 mm	55 °C	-40 C	1	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	ITE (Commercial)	Active Low Enable	40 W	15 V	8-DIP Module	87 %
Recom Power RP40-243.3SGW-HC	10 A	36 V	Through Hole	9 V	1.6 kV	50.8 mm	2 in	0.4 "	2 in	10.2 mm	50.8 mm	55 °C	-40 C	1	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	ITE (Commercial)	Active High Enable	40 W	3.3 V	8-DIP Module	86 %
