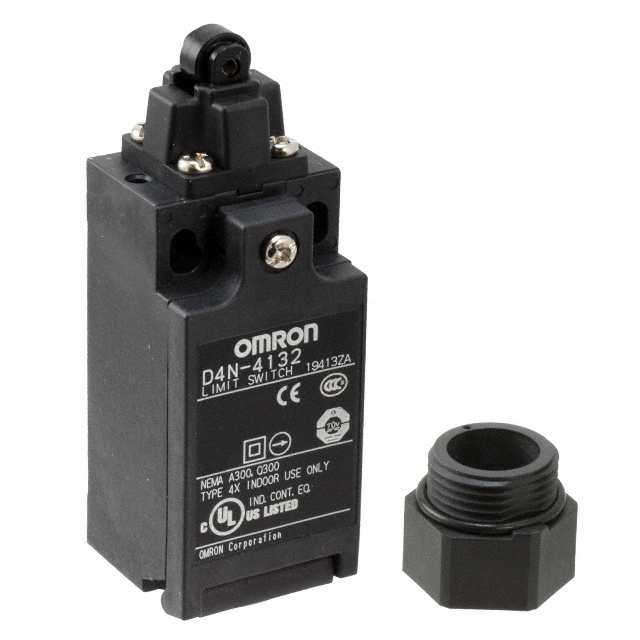

D4N-4132 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION DPST 3A 240V
| Part | Voltage Rating - DC | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Pretravel | Pretravel | Ingress Protection | Termination Style | Mechanical Life | Operating Position | Operating Position | Differential Travel | Differential Travel | Overtravel [custom] | Overtravel [custom] | Operating Force | Current Rating (Amps) | Mounting Type | Electrical Life | Release Force | Voltage Rating - AC | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 250 V | DPST-NO/NC | -30 ░C | 70 °C | Off-Mom On-Mom | 2 mm | 0.08 in | IP67 - Dust Tight Waterproof | Screw Terminal | 15000000 Cycles | 28.6 mm | 1.125 in | 1 mm | 0.04 in | 0.158 in | 4 mm | 663 gf | 3 A 270 mA | Chassis Mount | 300000 Cycles | 153 gf | 240 V | Roller Plunger |
