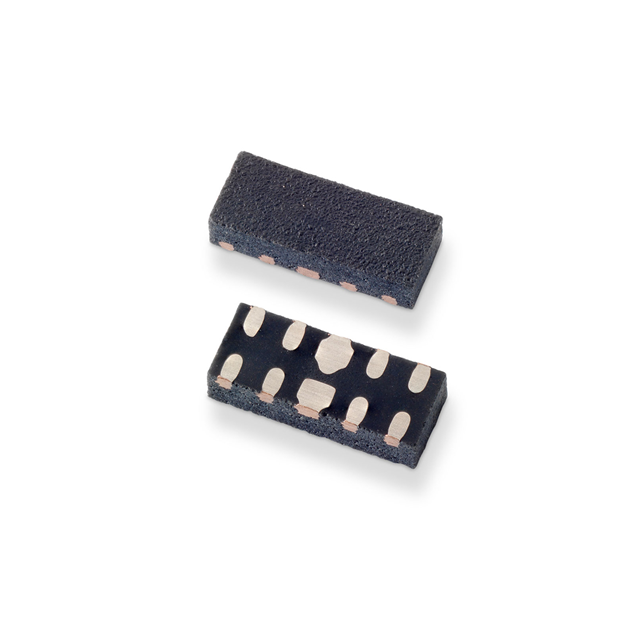

60V 3.5A 14pF 25kV DFN2510-10L TVS Array
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Type | Capacitance @ Frequency | Package / Case | Voltage - Breakdown (Min) [Min] | Mounting Type | Unidirectional Channels [custom] | Voltage - Clamping (Max) @ Ipp [Max] | Current - Peak Pulse (10/1000µs) | Power Line Protection | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Grade | Qualification | Voltage - Reverse Standoff (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 125 °C | -40 °C | Zener | 1 MHz 14 pF | 10-UFDFN | 62 V | Surface Mount | 4 | 102 V | 3.5 A | 10-µDFN | 1 | 2.5 | Automotive | AEC-Q101 | 60 V |
Description
AI
The SP1064E-04UTG is an avalanche breakdown diode fabricated in a proprietary silicon avalanche technology protect each I/O pin to provide a high level of protection for electronic equipment that may experience destructive electrostatic discharges (ESD). These robust diodes can safely absorb repetitive ESD strikes above the maximum level specified in IEC 61000-4-2 international standard (Level 4, ±8kV contact discharge) without performance degradation.
