F31G-1A7H1 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

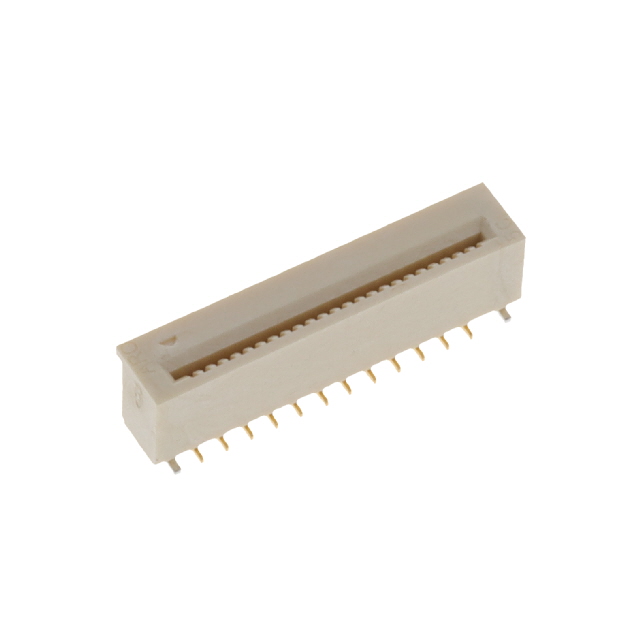

CONN FFC VERT 24POS 0.5MM SMD
| Part | Housing Color | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Mating Cycles | Voltage Rating | Cable End Type | Contact Material | Pitch | Pitch | Features | Height Above Board [z] | Height Above Board [z] | Number of Positions | Housing Material | Material Flammability Rating | Termination | Connector/Contact Type | Contact Finish | FFC, FCB Thickness | Mounting Type | Flat Flex Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Natural | 0.5 A | 1.97 Áin | 0.05 Ám | 30 | 50 V | Notched | Phosphor Bronze | 0.02 " | 0.5 mm | Solder Retention | 4.2 mm | 0.165 in | 24 | Glass Filled Liquid Crystal Polymer (LCP) | UL94 V-0 | Solder | Contacts Vertical - 1 Sided | Gold | 0.33 mm | Surface Mount | FFC FPC | -40 C | 105 ░C |
