UD8K Series

Catalog

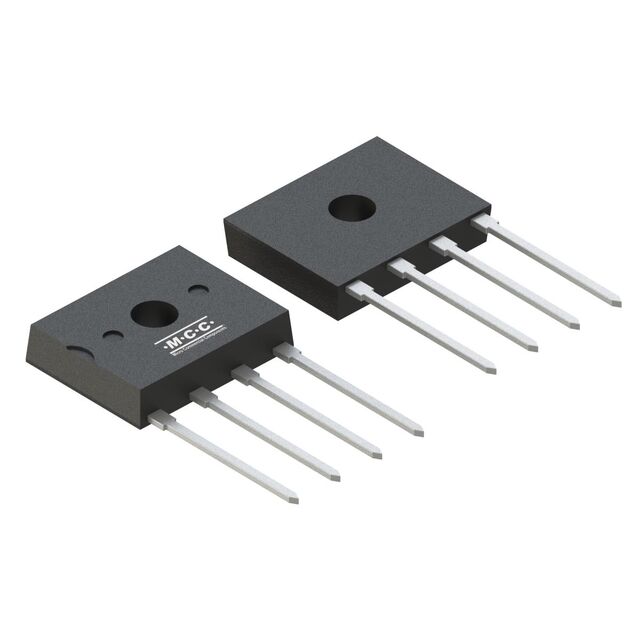

BRIDGE RECT 1PHASE 400V 8A D3K

Part	Supplier Device Package	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Technology	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Peak Reverse (Max) [Max]	Mounting Type	Diode Type	Voltage - Peak Reverse (Max)
MCC (Micro Commercial Components) UD8KB40-BP	D3K	5 µA	8 A	950 mV	Standard	4-SIP	150 °C	-55 °C	400 V	Through Hole	Single Phase
MCC (Micro Commercial Components) UD8KB10-BP	D3K	5 µA	8 A	950 mV	Standard	4-SIP	150 °C	-55 °C	100 V	Through Hole	Single Phase
MCC (Micro Commercial Components) UD8KB10-BP	D3K	5 µA	8 A	950 mV	Standard	4-SIP	150 °C	-55 °C	100 V	Through Hole	Single Phase
MCC (Micro Commercial Components) UD8KB40-BP	D3K	5 µA	8 A	950 mV	Standard	4-SIP	150 °C	-55 °C	400 V	Through Hole	Single Phase
MCC (Micro Commercial Components) UD8KB80-BP	D3K	5 µA	8 A	950 mV	Standard	4-SIP	150 °C	-55 °C		Through Hole	Single Phase	800 V
MCC (Micro Commercial Components) UD8KB05-BP	D3K	5 µA	8 A	950 mV	Standard	4-SIP	150 °C	-55 °C	50 V	Through Hole	Single Phase
MCC (Micro Commercial Components) UD8KB05-BP	D3K	5 µA	8 A	950 mV	Standard	4-SIP	150 °C	-55 °C	50 V	Through Hole	Single Phase
MCC (Micro Commercial Components) UD8KB80-BP	D3K	5 µA	8 A	950 mV	Standard	4-SIP	150 °C	-55 °C		Through Hole	Single Phase	800 V
