CKM12BFW Series

Catalog

SWITCH KEYLOCK 2POS SPDT 3A 250V

Part	Mechanical Life	Depth Behind Flange	Electrical Life	Actuator Type	Number of Positions	Angle of Throw	Voltage Rating - AC	Circuit	Current Rating (Amps)	Contact Timing	Mounting Type	Contact Finish	Key Removable Positions	Switch Function	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Material	Termination Style
NKK Switches CKM12BFW01-007	30000 Steps	31.2 mm	10000 Cycles	Flat Key	2	90 °	250 V	SPDT	3 A	Non-Shorting (BBM)	Panel Mount	Silver	1	On-On	16 mm	-25 °C	70 °C	Epoxy Sealed Terminals	Silver (Ag)	Solder Lug

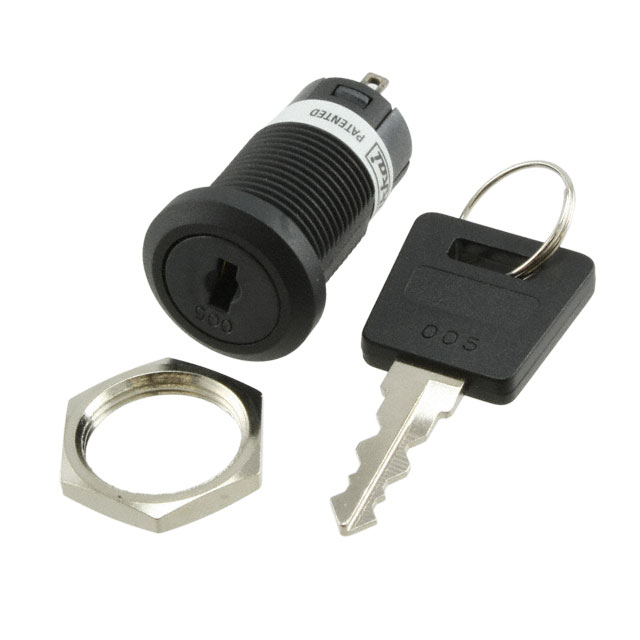

NKK Switches CKM12BFW01-005	30000 Steps	31.2 mm	10000 Cycles	Flat Key	2	90 °	250 V	SPDT	3 A	Non-Shorting (BBM)	Panel Mount	Silver	1	On-On	16 mm	-25 °C	70 °C	Epoxy Sealed Terminals	Silver (Ag)	Solder Lug

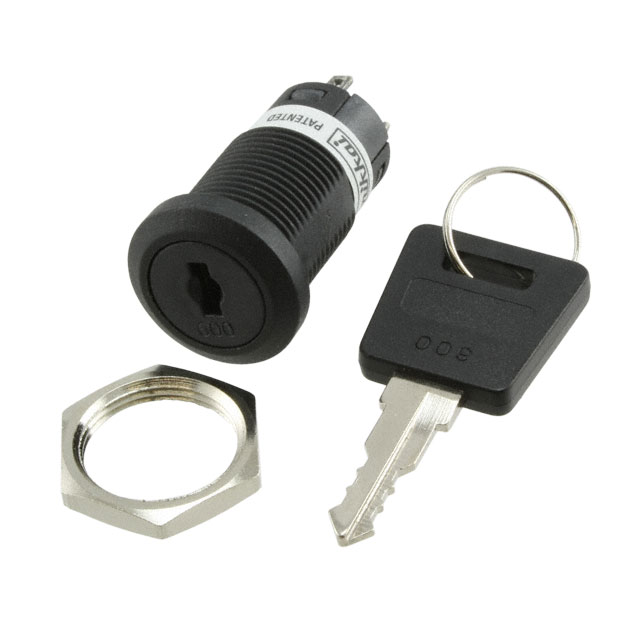

NKK Switches CKM12BFW01-009	30000 Steps	31.2 mm	10000 Cycles	Flat Key	2	90 °	250 V	SPDT	3 A	Non-Shorting (BBM)	Panel Mount	Silver	1	On-On	16 mm	-25 °C	70 °C	Epoxy Sealed Terminals	Silver (Ag)	Solder Lug

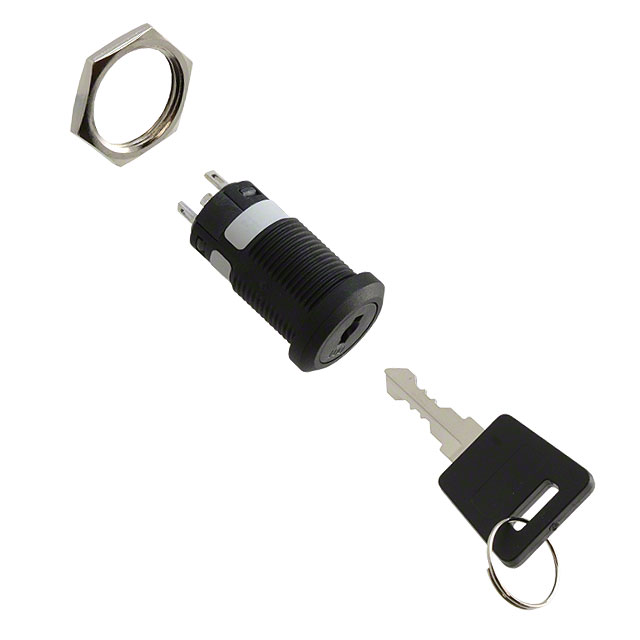

NKK Switches CKM12BFW01-001	30000 Steps	31.2 mm	10000 Cycles	Flat Key	2	90 °	250 V	SPDT	3 A	Non-Shorting (BBM)	Panel Mount	Silver	1	On-On	16 mm	-25 °C	70 °C	Epoxy Sealed Terminals	Silver (Ag)	Solder Lug

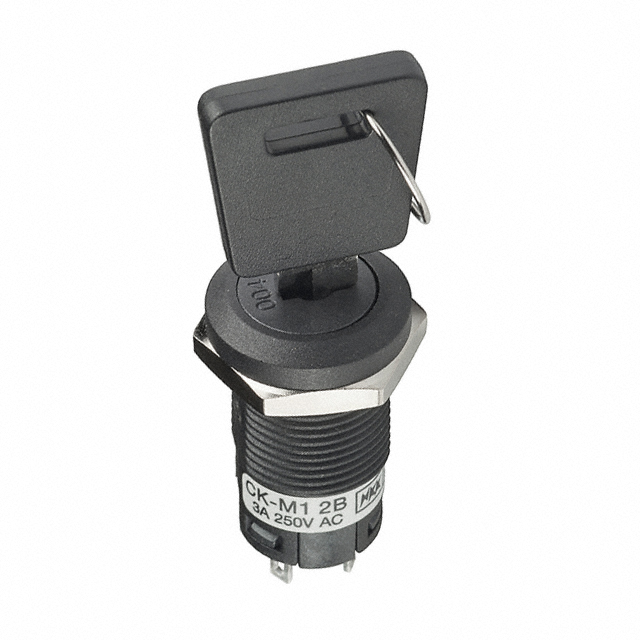

NKK Switches CKM12BFW01-003	30000 Steps	31.2 mm	10000 Cycles	Flat Key	2	90 °	250 V	SPDT	3 A	Non-Shorting (BBM)	Panel Mount	Silver	1	On-On	16 mm	-25 °C	70 °C	Epoxy Sealed Terminals	Silver (Ag)	Solder Lug

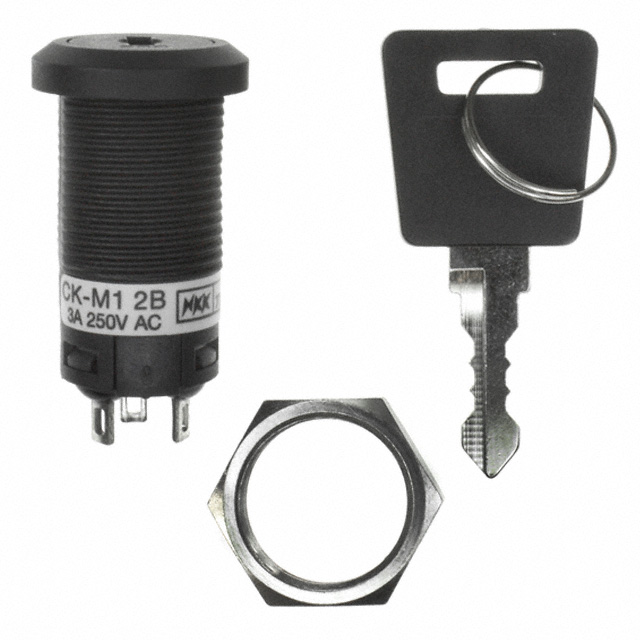

NKK Switches CKM12BFW01-002	30000 Steps	31.2 mm	10000 Cycles	Flat Key	2	90 °	250 V	SPDT	3 A	Non-Shorting (BBM)	Panel Mount	Silver	1	On-On	16 mm	-25 °C	70 °C	Epoxy Sealed Terminals	Silver (Ag)	Solder Lug
NKK Switches CKM12BFW01-004	30000 Steps	31.2 mm	10000 Cycles	Flat Key	2	90 °	250 V	SPDT	3 A	Non-Shorting (BBM)	Panel Mount	Silver	1	On-On	16 mm	-25 °C	70 °C	Epoxy Sealed Terminals	Silver (Ag)	Solder Lug
