8107 Series
Manufacturer: Belden Inc.
Beta
⌘K

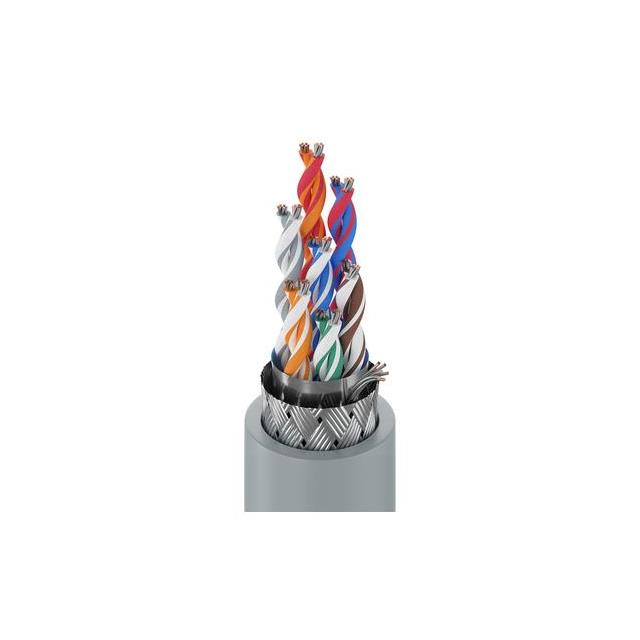

MULTI-PAIR 14COND 24AWG
| Part | Shield Material | Shield Coverage | Length | Length | Cable Type | Shield Type | Jacket (Insulation) Material | Ratings | Conductor Insulation | Features | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 152.4 m | 500 ft | Multi-Pair | Braid Foil | Poly-Vinyl Chloride (PVC) | UL Style 2919 | Foam Polyethylene (FPE) | Drain Wire | 300 VDC | 80 °C | -30 ░C | Chrome | Copper Tinned | 8.66 mm | 0.341 in | 14 | 0.035 in | 0.889 mm | 24 AWG | 7 | 32 AWG |
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 304.8 m | 1000 ft | Multi-Pair | Braid Foil | Poly-Vinyl Chloride (PVC) | UL Style 2919 | Foam Polyethylene (FPE) | Drain Wire | 80 °C | -30 ░C | Chrome | Copper Tinned | 8.66 mm | 0.341 in | 14 | 0.035 in | 0.889 mm | 24 AWG | 7 | 32 AWG |
