502426 Series

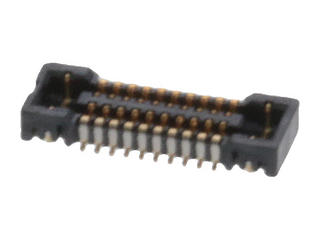

SlimStack Board-to-Board Receptacle, 0.40mm Pitch, Surface Mount, Dual Row, Vertical, 1.00mm Stacking Height, with Solder Tabs, with Vacuum Tape, 32 Circuits

Manufacturer: Molex

Catalog

SlimStack Board-to-Board Receptacle, 0.40mm Pitch, Surface Mount, Dual Row, Vertical, 1.00mm Stacking Height, with Solder Tabs, with Vacuum Tape, 32 Circuits

Part	Pitch	Pitch	Contact Finish	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Number of Positions	Connector Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Rows [custom]
Molex 5024268010	0.4 mm	0.016 in	Gold	1 mm	1 mm	0.039 "	80	Receptacle Center Strip Contacts	Surface Mount	0.1 Ám	4 Áin	Solder Retention	2
Molex 5024264412	0.4 mm	0.016 in	Gold	1 mm	1 mm	0.039 "	44	Receptacle Center Strip Contacts	Surface Mount	0.1 Ám	4 Áin	Solder Retention	2
Molex 5024266012	0.4 mm	0.016 in	Gold	1 mm	1 mm	0.039 "	60	Receptacle Center Strip Contacts	Surface Mount	0.1 Ám	4 Áin	Solder Retention	2
Molex 5024263010	0.4 mm	0.016 in	Gold	1 mm	1 mm	0.039 "	30	Receptacle Center Strip Contacts	Surface Mount	0.1 Ám	4 Áin	Solder Retention	2
Molex 5024262210	0.4 mm	0.016 in	Gold	1 mm	1 mm	0.039 "	22	Receptacle Center Strip Contacts	Surface Mount	0.1 Ám	4 Áin	Solder Retention	2

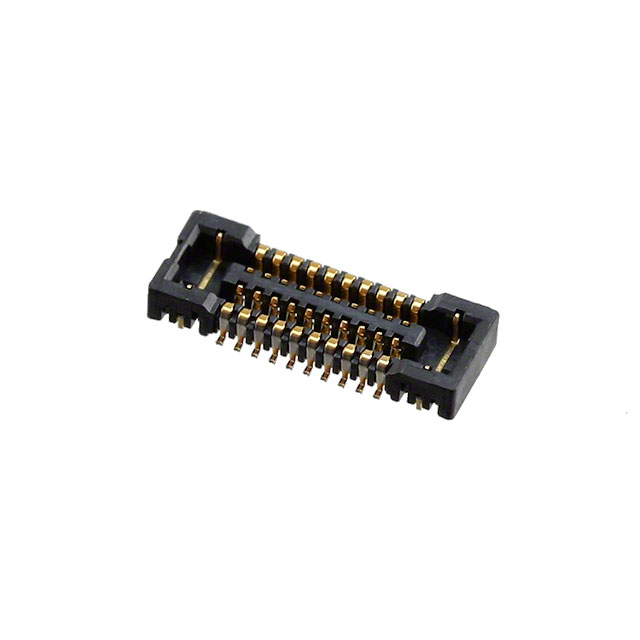

Molex 5024262010	0.4 mm	0.016 in	Gold	1 mm	1 mm	0.039 "	20	Receptacle Center Strip Contacts	Surface Mount	0.1 Ám	4 Áin	Solder Retention	2

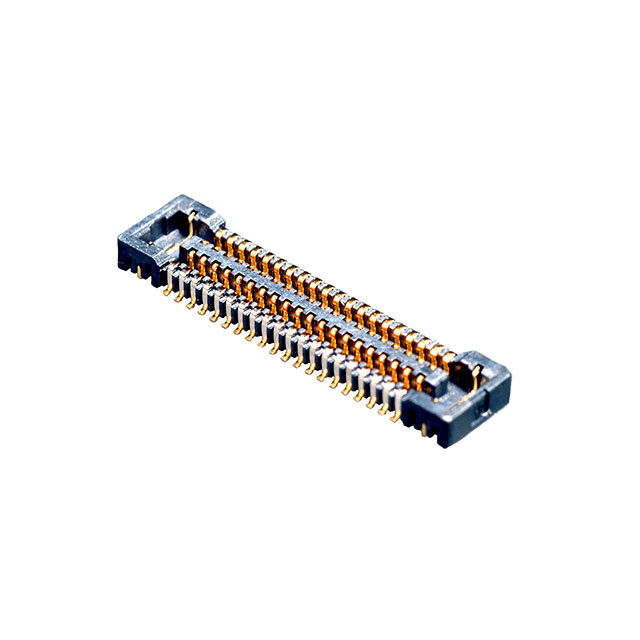

Molex 5024263212	0.4 mm	0.016 in	Gold	1 mm	1 mm	0.039 "		Receptacle Center Strip Contacts	Surface Mount	0.1 Ám	4 Áin	Solder Retention	2

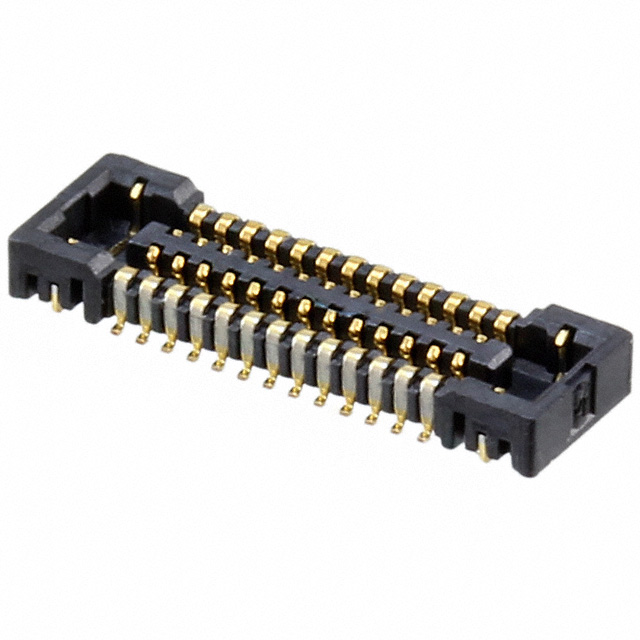

Molex 5024262630	0.4 mm	0.016 in	Gold	1 mm	1 mm	0.039 "	26	Receptacle Center Strip Contacts	Surface Mount	0.1 Ám	4 Áin	Solder Retention	2

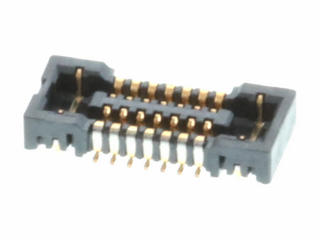

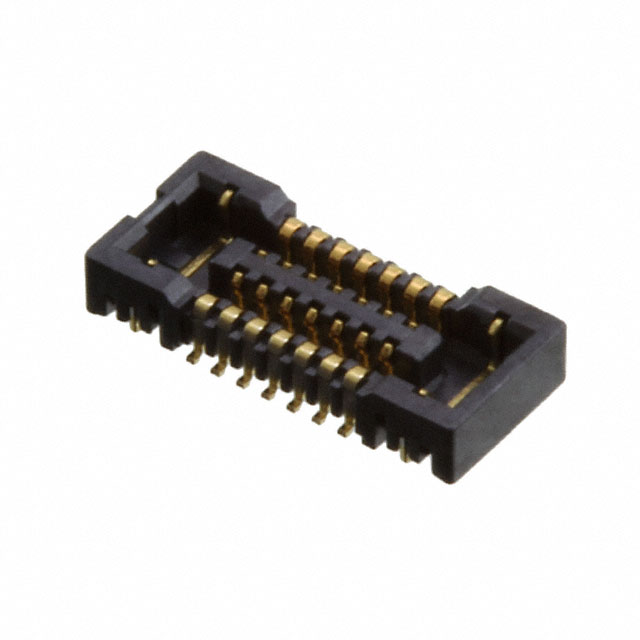

Molex 5024261430	0.4 mm	0.016 in	Gold	1 mm	1 mm	0.039 "	14	Receptacle Center Strip Contacts	Surface Mount	0.1 Ám	4 Áin	Solder Retention	2

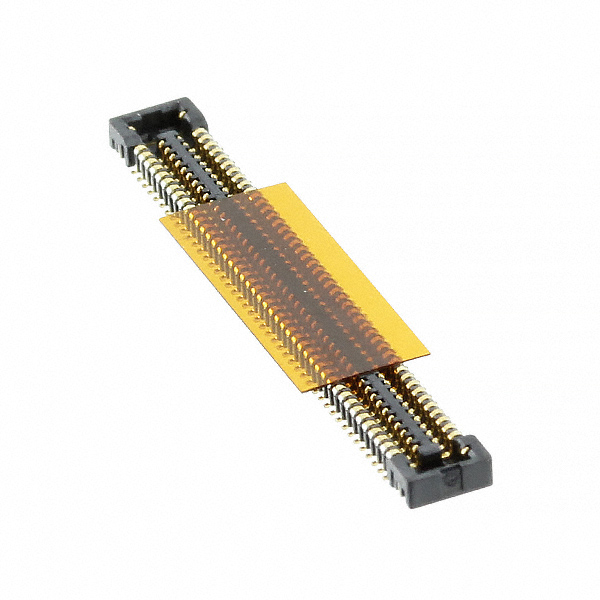

Molex 5024269030	0.4 mm	0.016 in	Gold	1 mm	1 mm	0.039 "	90	Receptacle Center Strip Contacts	Surface Mount	0.1 Ám	4 Áin	Solder Retention	2
